Name: Access Point TP-Link Omada EAP603-Outdoor WI-FI 6 AX1800
Brand: TP-Link
SKU: EAP603-OUTDOOR
Availability: InStock

Tecnología wi-fi

Velocidad wi-fi

Descripción

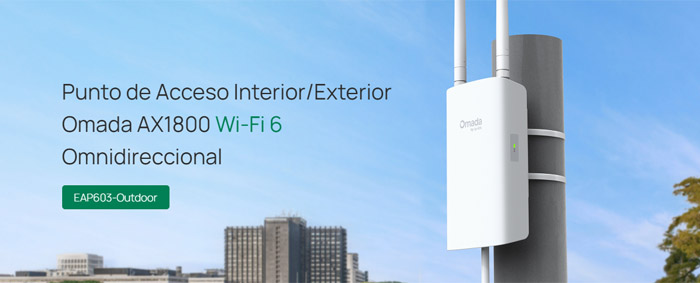

EAP603-Outdoor

Punto de Acceso de Interior/Exterior Wi-Fi 6 AX1800

Velocidades Wi-Fi 6 sin cortes de 1,8Gbps: 574 Mbps en 2,4 GHz y 1201 Mbps en 5 GHz.
Cobertura Omnidireccional de Doble Banda: Hasta 300 m de cobertura de largo alcance.
Alimentación PoE+: Soporta tanto 802.3at PoE como Passive PoE (adaptador incluido).
Ideal para entornos exteriores: IP65 resistente a la intemperie, protección contra rayos de 6 kV y un amplio rango de operación de -40 °C a +70 °C.
Configuración fácil y rápida: Montaje en pared o poste; Omada SDN para configuración con un solo clic
Funciones avanzadas: Omada Mesh, Roaming sin Cortes, y Gestión Centralizada en la Nube.

-----------------------------------------------------------------

Especificaciones

CARACTERÍSTICAS DE HARDWARE
Interfaz	• 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in • 1× Grounding Termina
Botones	1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
Fuente de Alimentación	Input: 802.3at PoE+: 42.5 - 57 V, 0.36A
Consumo de Potencia	• 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc. • Idle mode: 4.8W(PoE)
Dimensiones	• Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.) • Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
Antenas	Wi-Fi • 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas • 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas *Note: The gains above are the single-antenna peak gains. IoT • Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas
Bluetooth	Yes
Carcasa resistente a la intemperie	IP66 for Wall Mount IP65 for Pole Mount
Montaje	• Pole Mount (Kits included) • Wall Mount (Kits included)

CARACTERÍSTICAS INALÁMBRICAS
Coverage	• 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m)
Estándares Inalámbricos	5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax
Frecuencia	• 5 GHz • 2.4 GHz
Tasa de Señal	• 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps *Note: Country-Specific Restriction Apply
Funciones Inalámbricas	• Maximum number of BSSIDs: 16 (8 on each band) • Maximum number of associated STAs: 250+ • Guest Network • ACS (Automatic Channel Selection) • Airtime Fairness • Band Steering • 802.11 Rate Control • Rogue AP Detection • URL Filtering • WLAN Optimization • Lock to AP • SSID/Client Rate Limit • Load Balance • Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§ • Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit) • QoS (Quality of Service)
Seguridad Inalámbrica	• ACL • MAC Filter • 802.1X Authentication • MAC-Based Authentication • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None • Radius Accounting • PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC) • Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client • EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
Potencia de Transmisión	Maximum transmit power: CE (ERIP) • 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power) • 2.4 GHz: 25 dBm • 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3 Minimum transmit power CE (ERIP) • 2.4 GHz: 7 dBm • 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 FCC (Conducted Power) • 2.4 GHz: 4 dBm • 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3 Adjustable power increment: 1 dBm *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations

GESTIÓN
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Gestión Centralizada	• Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) • Omada App
Acceso a la nube	Yes. Require the use of an Omada controller.
Alertas por Correo Electrónico	Yes
LED de control ON / OFF	Yes
Control de Gestión de Acceso MAC	Yes
SNMP	v1, v2c, v3
SSH	Yes
Gestión basada en Web	Yes
