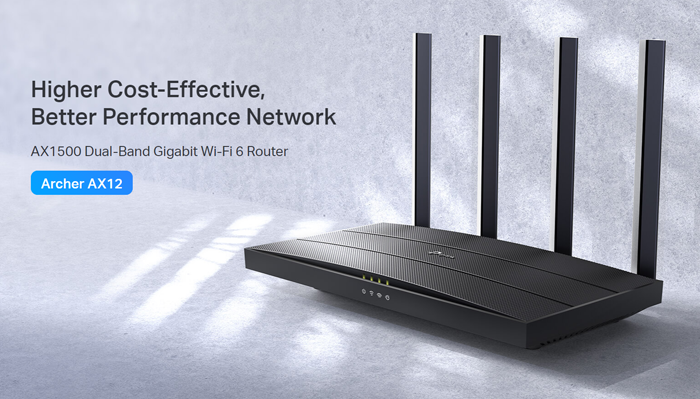

AX1500 Wi-Fi 6 Router
Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)15
Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.24
More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.3
Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.
Especificaciones
| INALAMBRICO | |
|---|---|
| Estándares | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| Velocidad WiFi | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| Rango WiFi |
2-3 Bedroom Houses 4× Fixed High-Performance Antennas |
| Capacidad WiFi |
High Dual-Band |
| Modos de trabajo | Router Mode Access Point Mode |
| SEGURIDAD | |
|---|---|
| Seguridad de la red | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Red de invitados | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| Servidor VPN | OpenVPN PPTP |
| Cifrado WiFi | WPA2-PSK WPA2-PSK/WPA-PSK WPA3-Personal WPA3-Personal/WPA2-PSK WPA2-Enterprise WPA/WPA2-Enterprise encryptions |
| HARDWARE | |
|---|---|
| Puertos ethernet | 1× Gigabit WAN Port 3× Gigabit LAN Ports |
| Botones | WPS/Reset Button |
| Energía | 12 V ⎓ 1 A |
| SOFTWARE | |
|---|---|
| Protocolos | IPv4 IPv6 |
| Controles parentales | URL Filtering Time Controls |
| Tipos de WAN | Dynamic IP Static IP PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Calidad de servicio | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Gestión | Tether App Webpage Check Web Emulator> |
| OTRO | |
|---|---|
| Requisitos del sistema | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| Certificaciones | FCC, CE, RoHS |
| Ambiente | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| DATOS DE PRUEBA | |
|---|---|
| Potencia de transmisión WiFi | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| Sensibilidad de recepción WiFi | 5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm 2.4 GHz: 11g 6Mbps: -96 54Mbps: -80 HT20-MCS0: -97 MCS7: -78 HT40-MCS0: -94 MCS7: -75 |
| FÍSICO | |
|---|---|
| Dimensiones (Al x An x Pr) | 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm) |
| contenidos del paquete | Wireless Router Archer AX12 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
