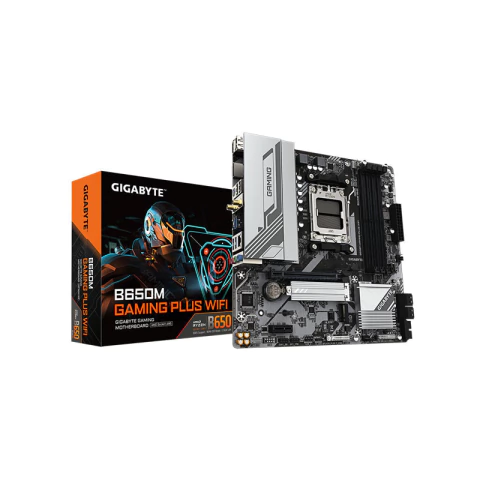

Motherboard Gigabyte B650M GAMING PLUS WIFI (AM5)

Descripción

B650M GAMING PLUS WIFI

Características principales

• Socket AM5 de AMD: compatible con procesadores AMD Ryzen™ serie 7000/Ryzen™ 8000/Ryzen™ serie 9000

• Rendimiento incomparable: Solución VRM digital de 5+2+2 fases

• DDR5 de doble canal: 4 DIMM SMD compatibles con módulos de memoria AMD EXPO™ e Intel® XMP

• Almacenamiento SuperSpeed: Conector PCIe 4.0 x4 M.2

• EZ-Latch: Ranura PCIe x16 con diseño de liberación rápida

• Redes rápidas: Wi-Fi 802.11ax y LAN 2.5GbE

• Conectividad extendida: 2*DP, HDMI

• Ventilador inteligente 6: cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con función FAN STOP

• Q-Flash Plus: Actualiza la BIOS sin instalar la CPU, la memoria ni la tarjeta gráfica

Especificaciones

• Procesador
  AMD Socket AM5, support for:
  AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
• Chipset
  AMD B650
• Memoria
  Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
  Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
• Gráficos Integrados
  Integrated Graphics Processor with AMD Radeon™ Graphics support
  - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 1.4 version.

  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  Support for up to triple-display at the same time
  (Graphics specifications may vary depending on CPU support.)
• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless

  Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.1/1.2)
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 80MHz wireless
  (Actual data rate may vary depending on environment and equipment.)
• Puertos de Expansión
  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
   AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
• Interfaz de Almacenamiento
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
   AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
  CPU:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  - 1 x USB 3.2 Gen 1 port on the back panel
  - 1 x USB 2.0/1.1 port on the back panel
  Chipset:
  - 2 x USB 3.2 Gen 1 ports on the back panel
  - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
• Conectores Internos de E/S
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x Q-Flash Plus button
  1 x reset jumper
  1 x Clear CMOS jumper
• Conectores del Panel Trasero
  1 x PS/2 keyboard/mouse port
  1 x USB Type-C® port, with USB 3.2 Gen 1 support
  3 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x HDMI port
  2 x DisplayPorts
  2 x SMA antenna connectors (2T2R) (1T1R)*


  * Only for Realtek® Wi-Fi 6 RTL8851BE

  1 x RJ-45 port
  3 x audio jacks
• Controlador de E/S
  iTE® I/O Controller Chip
• Monitorización H/W
  Voltage detection
  Temperature detection
  Fan speed detection
  Fan fail warning
  Fan speed control


  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash
  Support for Q-Flash Plus
• Software Incluido
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Sistema Operativo
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Diseño

  Micro ATX Form Factor; 24.4cm x 24.4cm
