Gigabyte Z890 AORUS MASTER (1851)

Inicio - Componentes - Motherboards - Socket 1851 - Gigabyte - Gigabyte Z890 AORUS MASTER (1851)

$1.136.570
Precio sin impuestos $939.314,05
Ver medios de pago
Entregas para el CP: Cambiar CP
Medios de envío
No sé mi código postal
Descripción

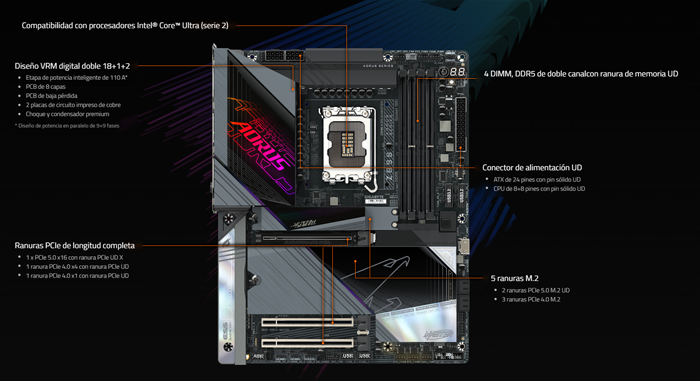

Z890 AORUS MASTER

Características principales

  • Admite procesadores Intel® Core™ Ultra (serie 2)

  • Solución VRM de 18+1+2 fases con gemelo digital

  • D5 Bionic Corsa para un rendimiento de memoria infinito

  • AORUS AI SNATCH : software de overclocking automático con modelos de IA

  • AI Perfdrive : proporciona un perfil preestablecido de BIOS personalizado y óptimo para los usuarios

  • Compatibilidad Premium : 4*DDR5 con soporte para módulo de memoria XMP

  • DDR Wind Blade : refrigeración activa mejorada para módulos de memoria

  • WIFI EZ-Plug : diseño rápido y sencillo para la instalación de antenas Wi-Fi

  • EZ-Latch Plus : ranuras PCIe y M.2 con liberación rápida y diseño sin tornillos

  • EZ-Latch Click : disipadores de calor M.2 con diseño sin tornillos

  • Enlace del panel del sensor : puerto de video integrado para una configuración sin complicaciones del panel en el chasis

  • Interfaz de usuario amigable : múltiples temas, control de ventilador AIO y escaneo automático Q-Flash en BIOS y SW

  • Nuevo monitor de potencia en HWinfo para monitorizar en tiempo real las fases de potencia de la CPU

  • Almacenamiento ultrarrápido : 5 ranuras M.2, incluidas 2 PCIe 5.0 x4

  • Protección térmica eficiente : VRM Thermal Armor Advanced y M.2 Thermal Guard XL

  • Redes rápidas : LAN 10GbE y Wi-Fi 7 con antena direccional de ganancia ultraalta

  • Conectividad extendida : Doble THUNDERBOLT™ 4 Tipo-C con DP-Alt

  • DTS: X® Ultra Audio : ALC1220 y DAC trasero ESS SABRE Hi-Fi 9118

  • Armadura PCIe ultraduradera : la placa posterior de metal de la ranura PCIe x16 para una mayor durabilidad

  • Ranura PCIe UD X : ranura PCIe 5.0 x16 con resistencia 10X para tarjeta gráfica

Especificaciones

  • Procesador

    LGA1851 socket: Support for Intel® Core™ Ultra Processors
    L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.
  • Chipset
    Intel® Z890 Express Chipset
  • Memoria
    Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Support CUDIMM memory module
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Gráfica Integrada
    Integrated Graphics Processor-Intel® HD Graphics support:
    - 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
    When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
    When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 2.1 version and HDCP 2.3

    - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

    * Support for HDMI 1.4 version.

    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time
  • Audio
    Realtek® ALC1220 CODEC

    * The front panel line out jack supports DSD audio.

    ESS ES9118 DAC chip
    Support for DTS:X® Ultra
    High Definition Audio
    2/4/5.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out
  • LAN
    Marvell® AQtion AQC113C 10GbE LAN chip
    (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
  • Módulo de comunicaciones inalámbricas
    Intel® Wi-Fi 7 BE200NGW
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

  • Zócalos de Expansión
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.

    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
  • Interfaz de almacenamiento
    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    - 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
    *Support up to 40Gbps with Thunderbolt devices
    *Support up to 20Gbps with USB4 devices
    *Support up to 10Gbps with USB 3.2 devices

    Chipset:
    - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    Chipset+USB 3.2 Gen 2x2 Hub:
    - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

    Chipset+2 USB 3.2 Gen 1 Hubs:
    - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

    Chipset+2 USB 2.0 Hubs:
    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Conectores Internos E/S
    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    4 x system fan/water cooling pump headers
    4 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    5 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x HDMI port (Note)
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    Voltage Measurement Points

    (Note) Actual support may vary by CPU
  • Panel E/S Trasero
    1 x Q-Flash Plus button
    1 x Clear CMOS button
    2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
    6 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    2 x antenna connectors (2T2R)
    2 x audio jacks
    1 x optical S/PDIF Out connector
  • Controlador E/S
    iTE® I/O Controller Chip
  • Monitorización Hardware
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    Noise detection
  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Otras Características
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Sistema Operativo
    Support for Windows 11 64-bit
  • Formato

    ATX Form Factor; 30.5cm x 24.4cm
