Gigabyte H610M S2H V2 DDR4 (1700)

Inicio - Componentes - Motherboards - Socket 1700 - Gigabyte - Gigabyte H610M S2H V2 DDR4 (1700)

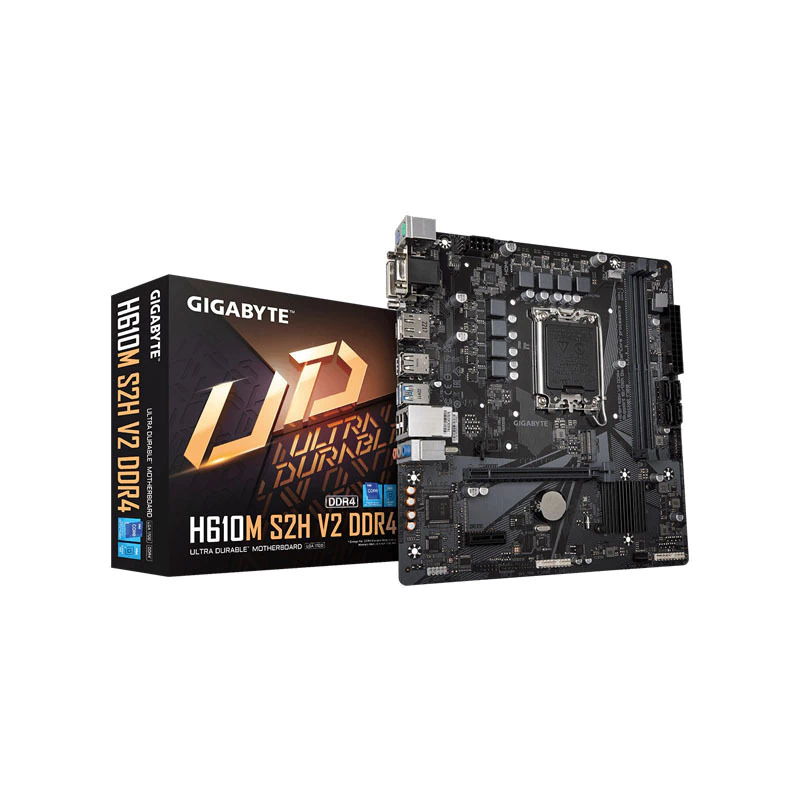

Gigabyte H610M S2H V2 DDR4

$177.629
$147.432,07 con Transferencia o depósito bancario
17% de descuento pagando con Transferencia o depósito bancario
Ver medios de pago
Entregas para el CP: Cambiar CP
Medios de envío
No sé mi código postal
Descripción

Gigabyte Technology logo 20080107.svg

H610M S2H V2 DDR4

Placa base Intel® H610 con diseño VRM digital de fases híbridas 6+1+1, diseño PCIe 4.0*, M.2 Gen3 x4, puertos DisplayPort/HDMI/DVI-D/D-Sub para múltiples pantallas, resistencia antiazufre, ventilador inteligente 6

  • Admite procesadores Intel ® Core™ 14.º, 13.º y 12.º

  • DDR4 de doble canal sin búfer y sin ECC, 2 DIMM

  • Diseño VRM digital híbrido 6+1+1

  • LAN GbE con gestión de ancho de banda

  • NVMe PCIe 3.0 x4 M.2

  • Puertos DisplayPort / HDMI / DVI-D / D-Sub para múltiples pantallas

  • Condensadores de audio de alta calidad y protección contra el ruido de audio

  • Smart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP

  • GIGABYTE APP Center, uso sencillo y fácil

  • Diseño de resistencias antiazufre

*El soporte real puede variar según la CPU.

Especificaciones

  • Procesador

    1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.

  • Chipset

    1. Intel® H610 Express Chipset

  • Memoria

    1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. upport for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Gráfica Integrada

    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

  • Zócalos de Expansión

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

  • Interfaz de almacenamiento

    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors

  • USB

    Chipset:
    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Conectores Internos E/S

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x RGB LED strip header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x USB 3.2 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper

  • Panel E/S Trasero

    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x DisplayPort
    6. 1 x HDMI port
    7. 2 x USB 3.2 Gen 1 ports
    8. 4 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 3 x audio jacks

  • Controlador E/S

    1. iTE® I/O Controller Chip

  • Monitorización Hardware

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.

  • BIOS

    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Otras Características

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Sistema Operativo

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Formato

    1. Micro ATX Form Factor; 23.0cm x 21.5cm
