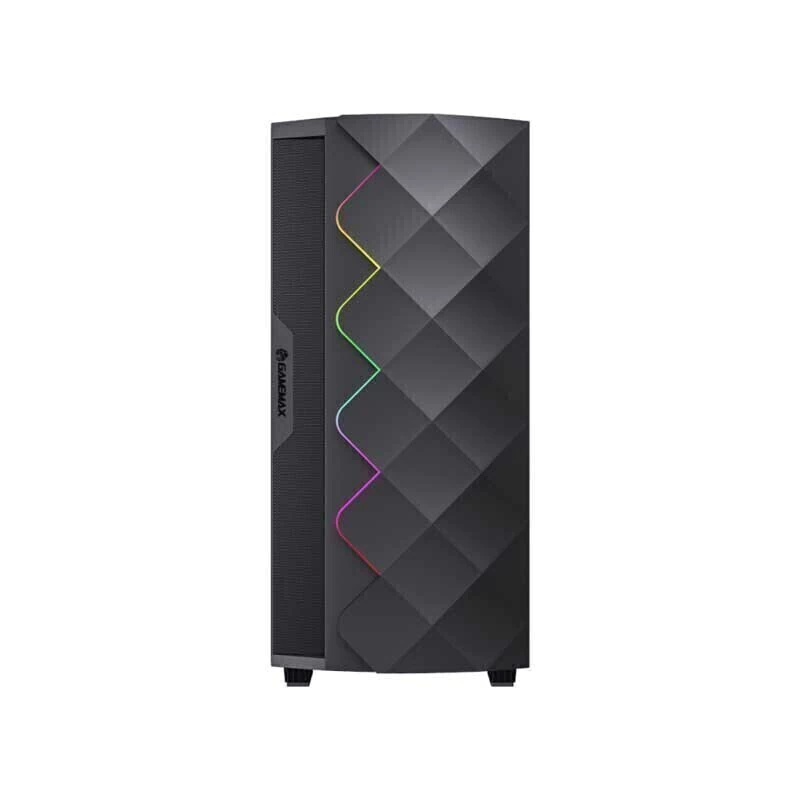

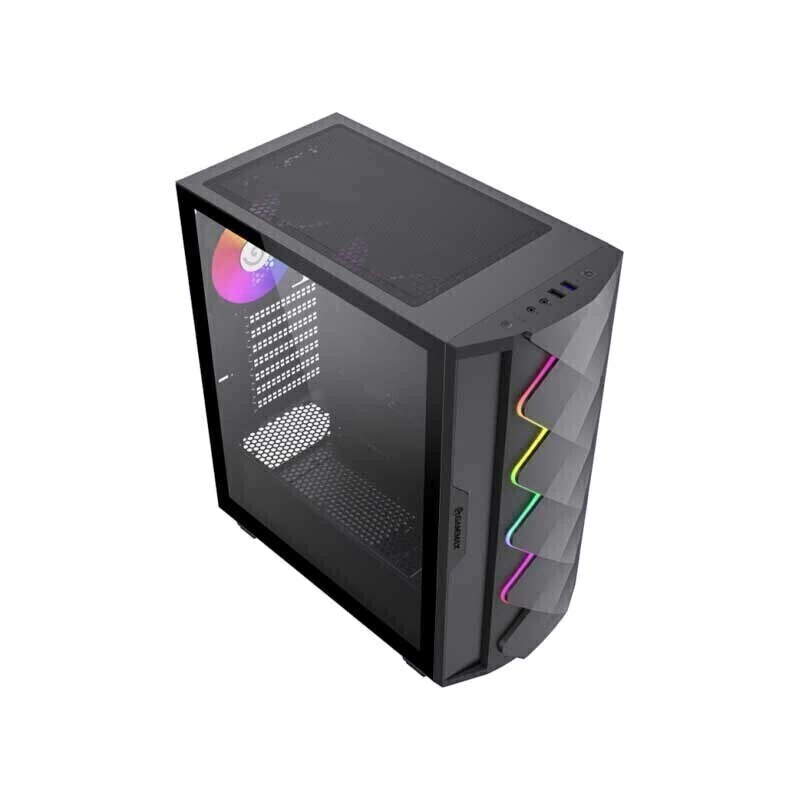

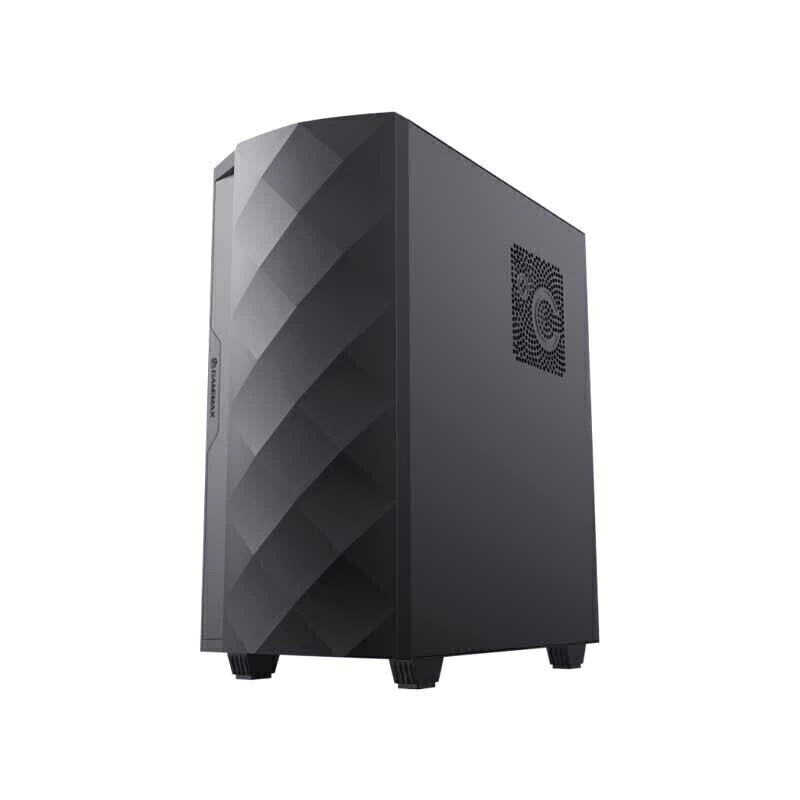

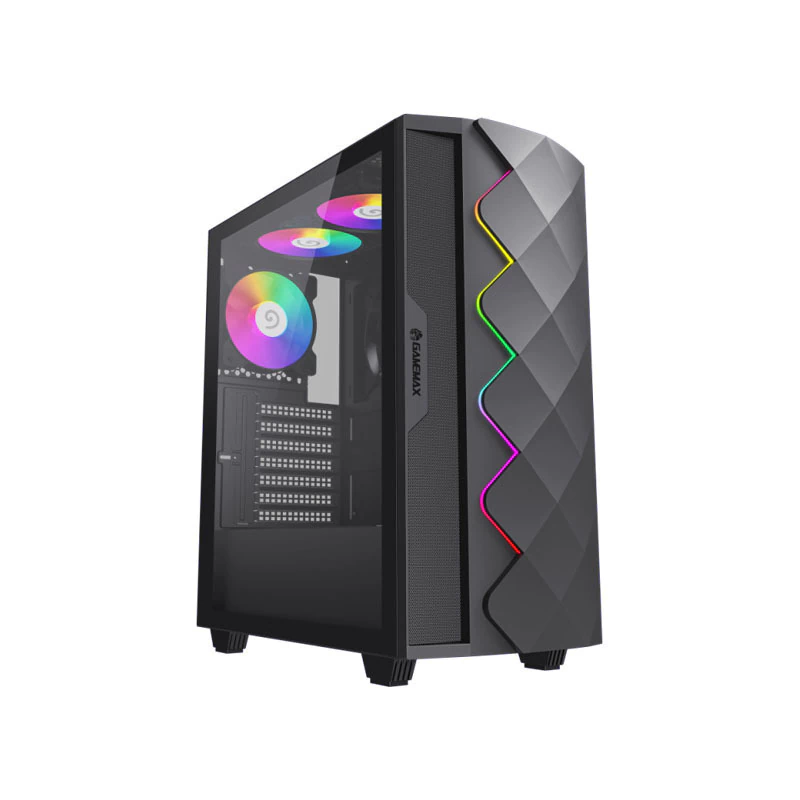

GameMax Diamond CP BK Mid-Tower Caja Gaming para PC
•Diseño de puerta deslizante: Apertura y cierre fácil.
•Estética premium: Efecto de corte en diamante y tira LED espectral incrustada para una iluminación RGB estilizada.
•Refrigeración COC: Ventilador turbo activo con entrada de aire en forma de T para una mejor disipación de calor y refrigeración directa de la placa base.
•Soporte para ventiladores y RGB: Admite hasta 5 ventiladores con un conector ARGB de 3 pines para fácil control a través del firmware integrado.
•Funciones versátiles: Cubierta de PSU de largo completo, bahías separadas para HDD y excelente gestión de cables para estilo y rendimiento.
Especificaciones
|
Factory #Diamond CP |
SPECIFICATION |
|
|
Form Factor (Midi, Micro, Mini ITX, Full) |
Midi ATX Tower |
|
|
Chassis |
SPCC : 0.5mm |
|
|
PSU Form Factor |
Bottom/ATX |
|
|
M/B Form Factor |
ATX、M-ATX、E-ATX (No fan on front) |
|
|
Front Panel |
ABS |
|
|
Top Panel |
metal cover |
|
|
Branding |
Box |
GameMax standard |
|
Unit |
1 |
|
|
Side Panel |
Left |
Tempered Glass |
|
Right |
metal cover |
|
|
External Drive Bay(s) |
5.25" (ODD) |
*0 |
|
3.5" |
*0 |
|
|
Internal Drive Bay(s) |
3.5" (HDD) |
*2 |
|
2.5" (SSD) |
*2 |
|
|
I/O CONFIG |
Buttons |
*2 |
|
USB2.0 Port(s) |
*1 |
|
|
USB3.0 Port(s) USB3.1 GEN1 |
*1 |
|
|
HD Audio Support |
*1 |
|
|
Card Reader (Support) |
*0 |
|
|
P-Lock |
*0 |
|
|
RGB Controller |
*1 Build-in Master FAN |
|
|
Controller max. fans |
|
|
|
RGB Controller max. LED strips |
|
|
|
Remote (IR or RF) |
*Top RGB switch |
|
|
Cooling Fan Support |
Front |
3x120mm,2x140mm(Fan optional) |
|
Top |
2x120mm(ARGB Fan Included),2x140mm (Fan optional) |
|
|
Rear |
1x120mm (ARGB Fan Included) |
|
|
MB Plate |

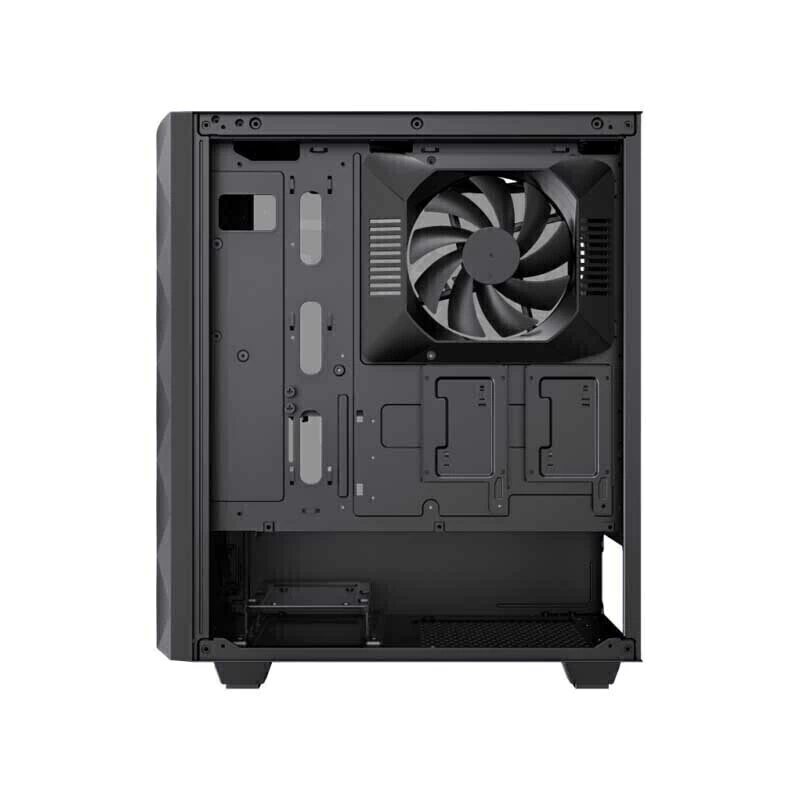

1x 140mm Turbo Fan (Included) |
|
|
PSU Cover |
2x120mm (Fan optional) |
|
|
Water Cooling Support (Radiator Size) |
Front |
120mm, 140mm,240mm,280mm |
|
Top |
120mm, 240mm |
|
|
Rear |
120mm*1 |
|
|
Dust Cover |
Bottom and top cover with dust filter |
|
|
Slots |
*7 |
|
|
Carton & Logo |
GAMEMAX |
|
|
Dimensions |
Chassis |
(L)360*(W)210*(H)440mm |
|
Full Case (inc Fascia) |
(L)421*(W)210*（H)460mm |
|
|
Carton |
(L)*(W)*（H)mm |
|
|
Net Weight (Kg) |
4.4kgs |
|
|
Gross Weight (Kg) |
5.3kgs |
|
|
VGA Card Length |
up to 340mm |
|
|
CPU Cooler Height |
170mm |
|
|
Cable Management Depth |
22mm |
|
