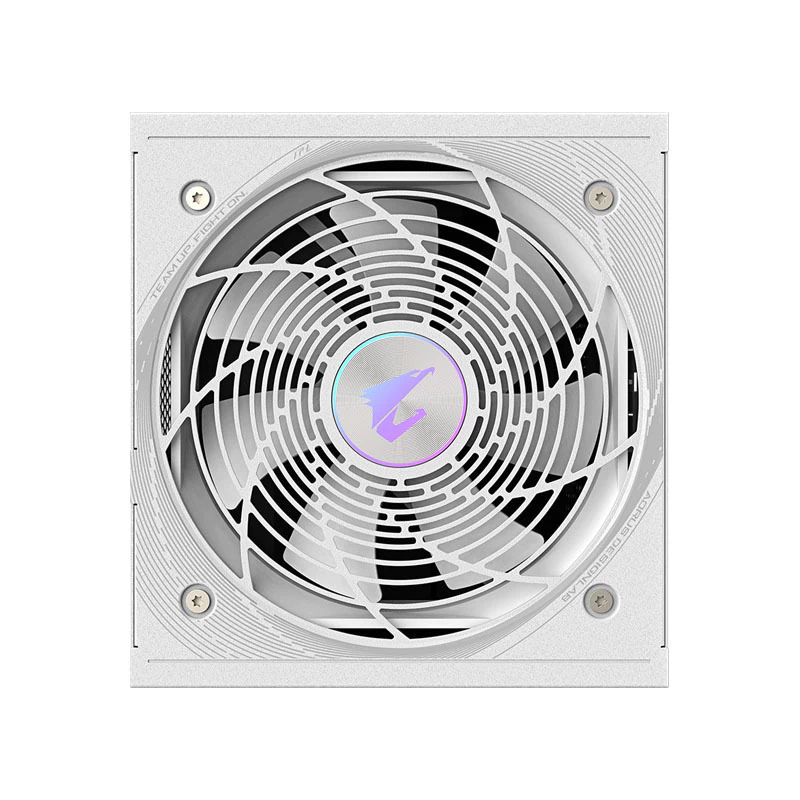

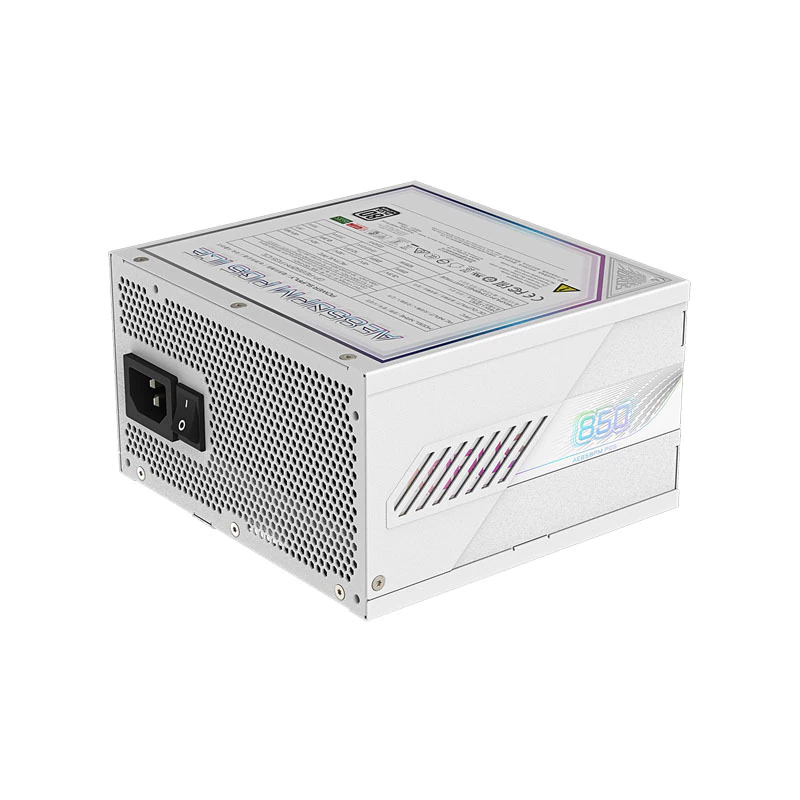

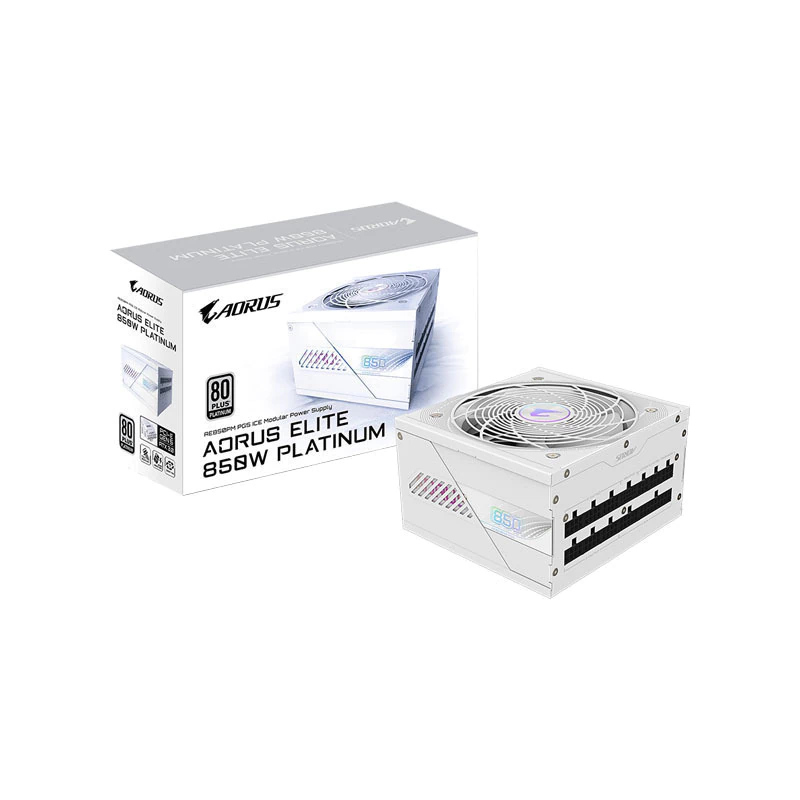

Fuente AORUS ELITE P850W ICE 80 Plus Platinum (GP-AE850PM PG5 ICE)

Descripción

ELITE P850W (GP-AE850PM PG5 ICE)

• ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
• 80 PLUS Platinum certified
• 100% Japanese capacitors
• 120mm smart Fluid Dynamic Bearing (FDB) fan
• Compact design
• Fully modular design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 10 years warranty (Adjusted according to different regions)

Ver página de GIGABYTE

--------------------------------------------------------------------------------------------------------

Especificaciones

Model

• GP-AE850PM PG5 ICE

Type

• Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

PFC

• Active PFC (>0.9 typical)

Input Voltage

• 100-240 Vac (full range)

Input Current

• 12-6A

Input Frequency

• 60-50 Hz

Output Capacity

• 850W

Dimensions

• 150 x 140 x 86mm

Fan Type

• 120mm Fluid Dynamic Bearing (FDB) Fan

80 PLUS

• Platinum

Efficiency

• 92% at typical load

MTBF

• 100,000 hours

Protections

• OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal

• 100-150ms

Hold Up Time

• 16ms

Cable Type

• Flat, All white

Connectors

• ATX/MB 20+4 Pin x 1 : 650mm*1

• CPU/EPS 4+4 Pin x 2 : 700mm*2

• PCI-e 16 Pin x 1 : 700mm*1

• PCI-e 6+2 Pin x 6 : 650mm+150mm2, 750mm2

• SATA x 8 : 600mm+150mm+150mm+150mm*2

• 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
