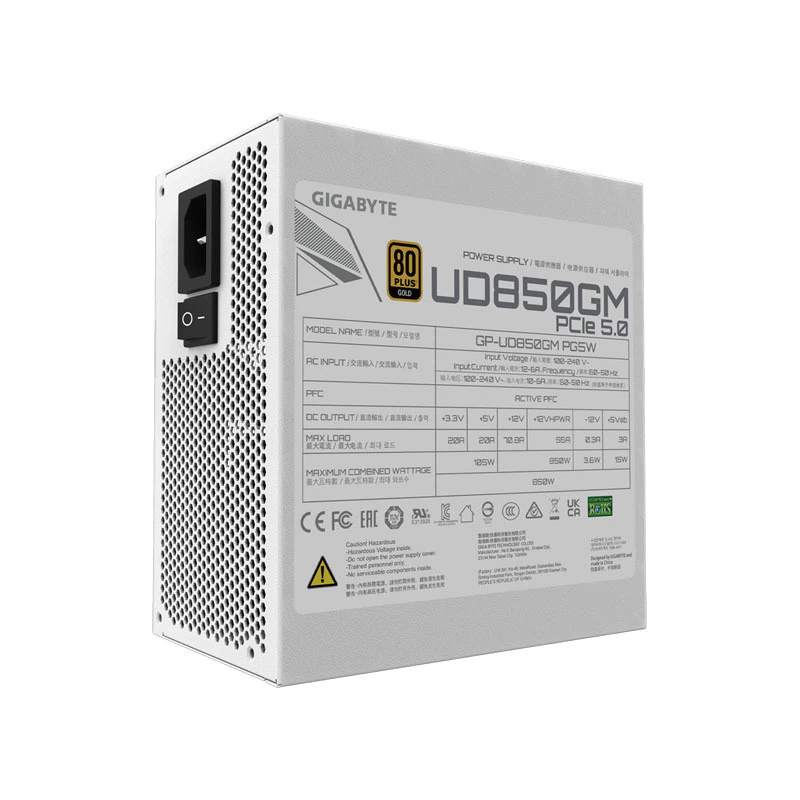

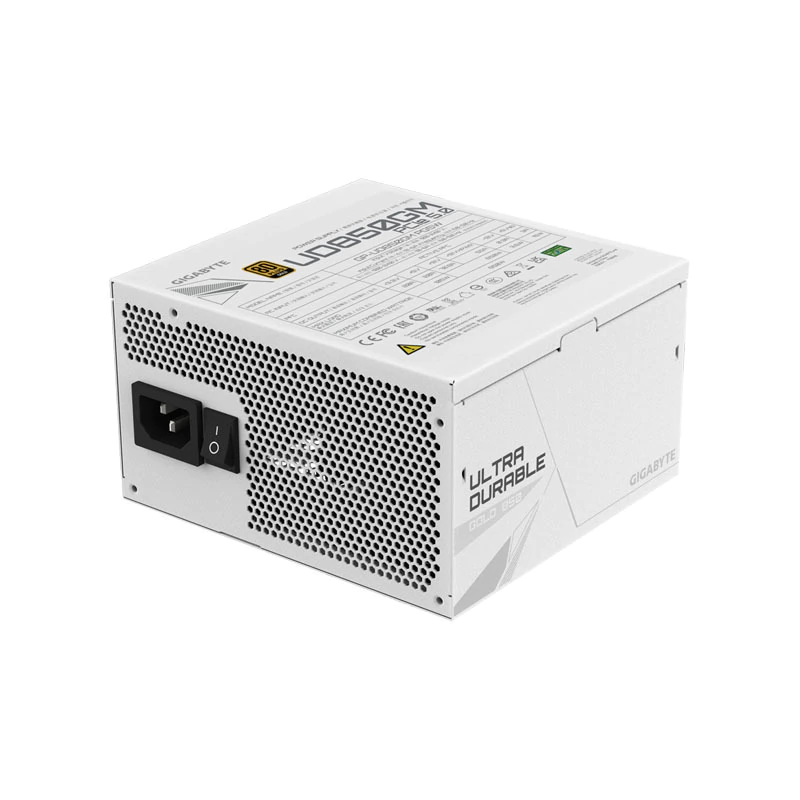

Fuente Gigabyte 850W 80 Plus Gold (GP-UD850GM PG5W)

Descripción

GP-UD850GM PG5W

• Ultra Durable
  •  Main Japanese capacitors
  •  Enhanced thermal solution
  •  120mm smart hydraulic bearing (HYB) fan
  •  OVP/OPP/SCP/UVP/OCP/OTP protection
• Support PCIe Gen 5.0 graphics cards
• Support Intel ATX 3.0 standard
• 80 PLUS Gold certified
• Fully modular design
• Compact design
• 5 years warranty (Adjusted according to different regions)

Ver página de GIGABYTE

--------------------------------------------------------------------------------------------------------

Especificaciones

Model

• GP-UD850GM PG5W

Type

• Intel Form Factor ATX 12V v3.0

PFC

• Active PFC (>0.9 typical)

Input Voltage

• 100-240 Vac (full range)

Input Current

• 12-6A

Input Frequency

• 60-50 Hz

Output Capacity

• 850W

Dimension

• 150 x 140 x 86 mm

Fan Type

• 120mm Hydraulic Bearing (HYB) fan

80 PLUS

• Gold

Efficiency

• 90% at typical load

MTBF

• 100,000 hours

Protection

• OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal

• 100-150ms

Hold Up Time

• 16ms

Cable Type

• Flat, All white

Connectors

• ATX/MB 20+4 Pin x 1 : 610mm*1

• CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

• PCI-e 16 Pin x 1 : 700mm*1

• PCI-e 6+2 Pin x 4 : 600mm+150mm*2

• SATA x 8 : 600mm+150mm+150mm+150mm*2

• 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
