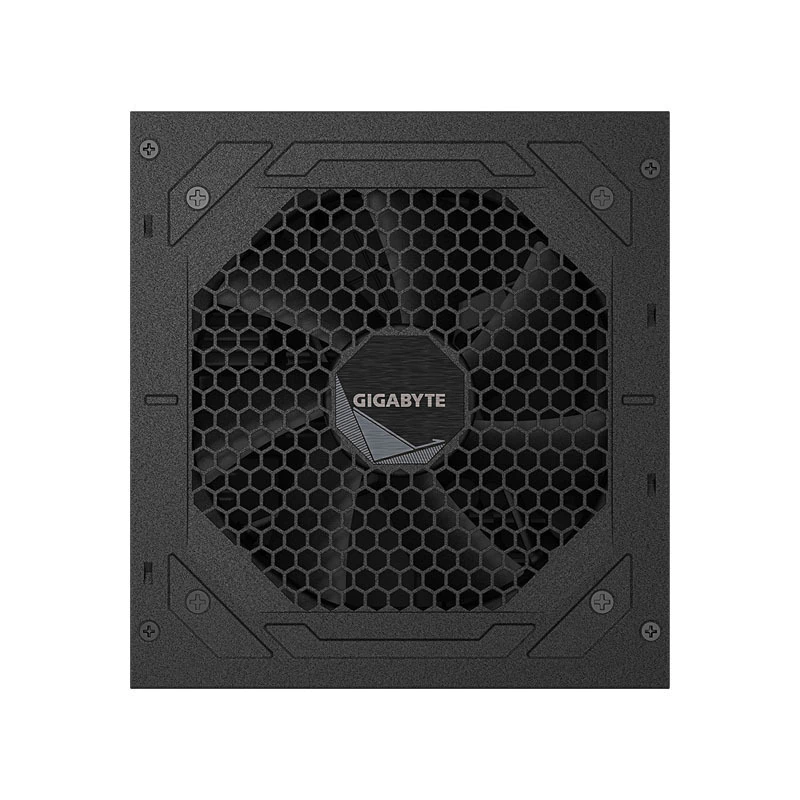

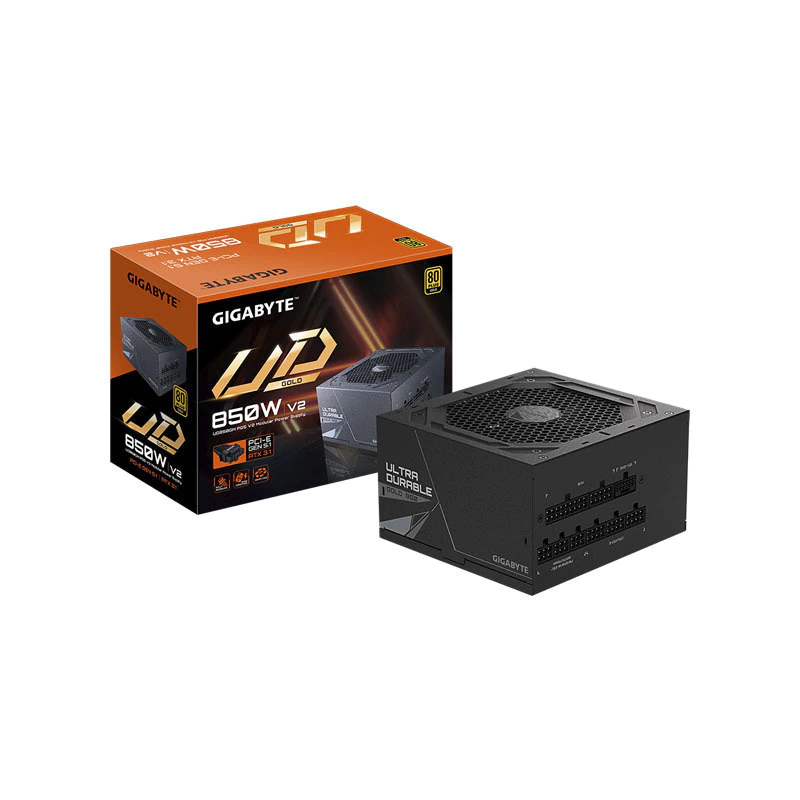

Fuente Gigabyte UD850GM PG5 V2 80 Plus Gold (GP-UD850GM PG5 V2)

Descripción

UD850GM PG5 V2 (GP-UD850GM PG5 V2)

Features

• Ultra Durable

  •  100% Japanese capacitors

  •  120mm smart hydraulic bearing (HYB) fan

  •  Optimized thermal solution

  •  OVP/OPP/SCP/UVP/OCP/OTP protection

• Intel ATX 3.1 and PCIe Gen 5.1 ready

• 80 PLUS Gold certified

• Fully modular design

• Powerful single +12V rail

• Compact size

--------------------------------------------------------------------------------------------------------

Especificaciones

Model

• GP-UD850GM PG5 V2

Type

• Intel Form Factor ATX 12V v3.1

PFC

• Active PFC (>0.9 typical)

Input Voltage

• 100-240 Vac (full range)

Input Current

• 15-6.5A

Input Frequency

• 60-50 Hz

Output Capacity

• 850W

Dimension

• 150 x 140 x 86 mm

Fan Type

• 120mm Hydraulic Bearing (HYB) Fan

80 PLUS

• Gold

Efficiency

• 90% at typical load

MTBF

• 100,000 hours

Protection

• OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal

• 100-150ms

Hold Up Time

• 16ms

Cable Type

• Embossed, All black

Connectors

• ATX/MB 20+4 Pin x 1 : 610mm*1

• CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1

• PCI-e 6+2 Pin x 4 : 600mm+150mm*2

• PCI-e 12+4 Pin x 1 : 700mm*1

• SATA x 8 : 600mm+150mm+150mm+150mm*2

• 4 Pin Peripheral x 3 + 4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
