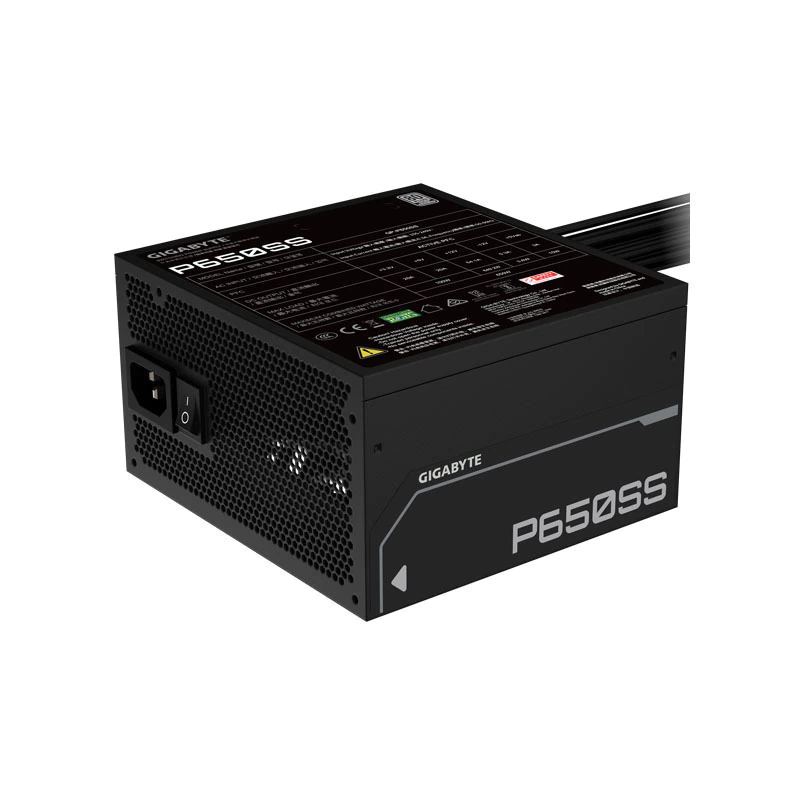

Fuente Gigabyte 650W 80 Plus Silver (GP-P650SS)

Descripción

GP-P650SS

• 80 PLUS Silver certified (230V EU)
• Support Intel ATX 3.0 standard (compatible with ATX 3.1)
• 120mm Fluid Dynamic Bearing (FDB) Fan
• Flat cable design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 3 years warranty (Adjusted according to different regions)

Ver página de GIGABYTE

--------------------------------------------------------------------------------------------------------

Especificaciones

Model

• GP-P650SS

Type

• Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

PFC

• Active PFC (>0.9 typical)

Input Voltage

• 155-240 Vac

Input Current

• 6.3A

Input Frequency

• 50-60 Hz

Output Capacity

• 650W

Dimension

• 150 x 140 x 86 mm

Fan Type

• 120mm Fluid Dynamic Bearing (FDB) fan

80 PLUS

• Silver

Efficiency

• 90% at typical load (230V EU)

MTBF

• 100,000 hours

Protection

• OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal

• 100-150ms

Hold Up Time

• 16ms

Cable Type

• Flat, All black

Connectors

• ATX/MB 20+4 Pin x 1 : 600mm*1

• CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1

• PCI-e 6+2 Pin x 2 : 600mm*2

• SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1

• SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
