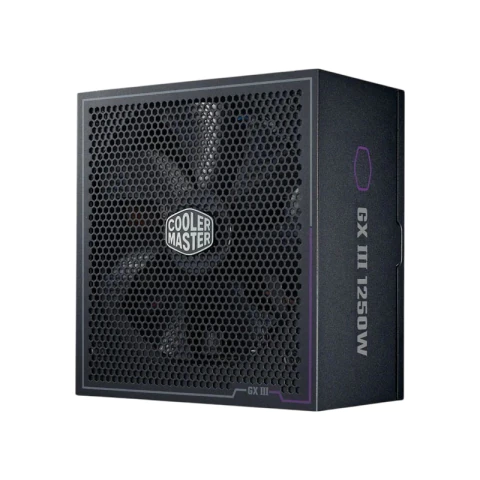

Cooler Master GX III Gold 1250 80 Plus Gold (1250W)

ModelMPX-C503-AFAG

ATX VersionATX 12V Ver. 3.0

PFCActive PFC

Input Voltage100-240V

Input Current15-7A

Input Frequency50-60Hz

Dimensions (L x W x H)160 x 150 x 86 mm

Fan Size135mm

Fan BearingFDB

Fan Speed2300 RPM

Efficiency≥90% @ Typical Load

80 PLUS Rating80 PLUS Gold

ErP 2014 Lot 3Yes

Operating Temperature0-50°C

Power Good Signal100 - 150 ms

Hold Up Time≥ 16ms

MTBF>100,000 Hours

ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

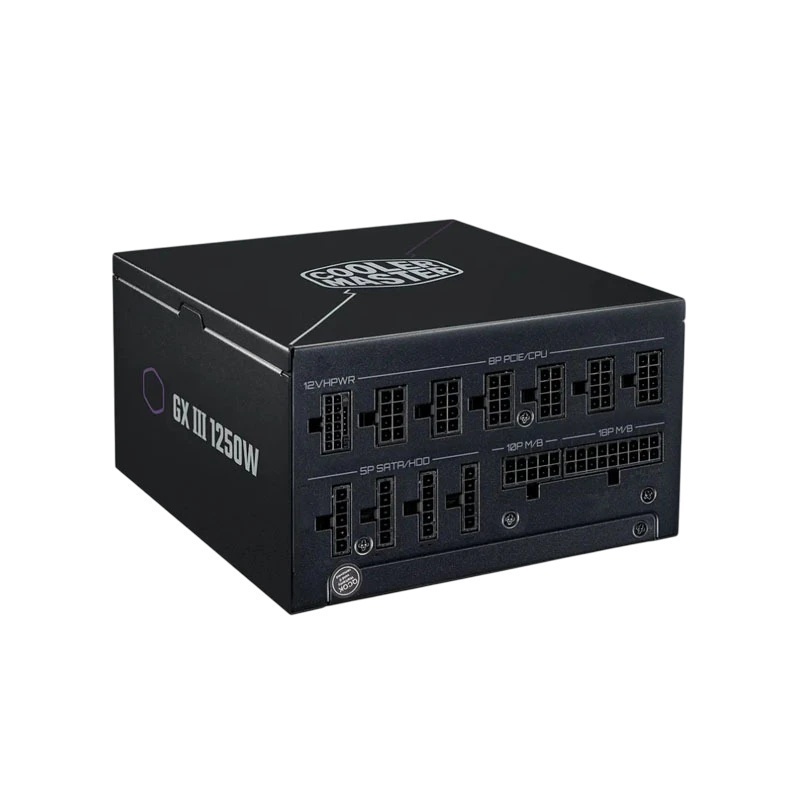

ATX 24 Pin Connectors1

EPS 4+4 Pin Connectors1

EPS 8 Pin Connector1

SATA Connectors12

Peripheral 4 Pin Connectors4

PCI-e 6+2 Pin Connectors3

12VHPWR Connector1

SeriesGX Series

80 Plus EfficiencyGold

ModularFully Modular

CategoryAbove 750W

Form FactorATX
