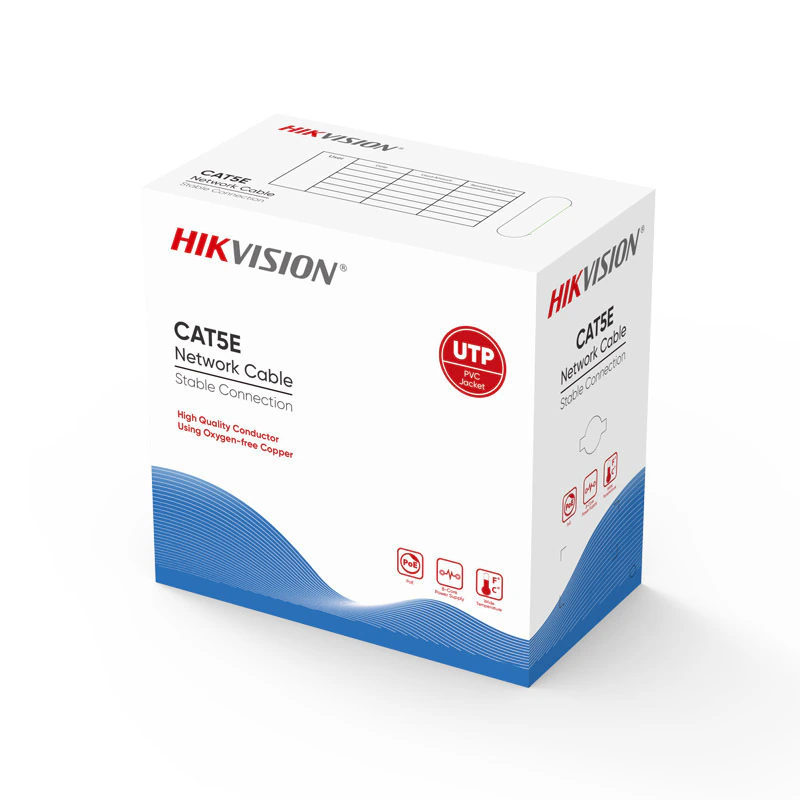

Cable UTP CAT.5E Hikvision Interior 305Mts CMX

Descripción

DS-1LN5E-E/E

305 m CAT5E UTP Network Cable (Solid Copper, 0.45 mm, CMX)

• Full diameter 305 m CAT5E network cable

• Excellent transmission performance using oxygen-free copper

• Quality verified by Fluke test

• Guaranteed long PoE transmission distance

• Great PVC flame resistance

Especificaciones

• General

• Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,

• PackingWooden Tray & Carton

• Carton DimensionPer request

• Packing length305±1.5m/80±0.5m

• Rip-cordYes

• Drain wireNo

• Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,

• Electrical Characteristics (20℃)1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC Resistance Ω/100m) max 14.8,DC Conductor Resistance Unbalance(%) max 5.0,

• Conductor

• MaterialSolid-Bare Copper,Content 99.95%,

• Nom.O.D.(mm)0.450±0.005

• Insulation

• MaterialHDPE

• Diameter0.82±0.04mm

• Sheath

• Grosor0.50±0.05 mm

• External O.D.4.7±0.4 mm

• SuperficieClean,Frap,Satiation

• MaterialPVC(complies RoHS),CMX

• ColorGrey ZLC1003

• Surface Printing

• Letter height3.0±0.3mm

• ColorBlack

• Print error & Space≤±0.5%，1m
