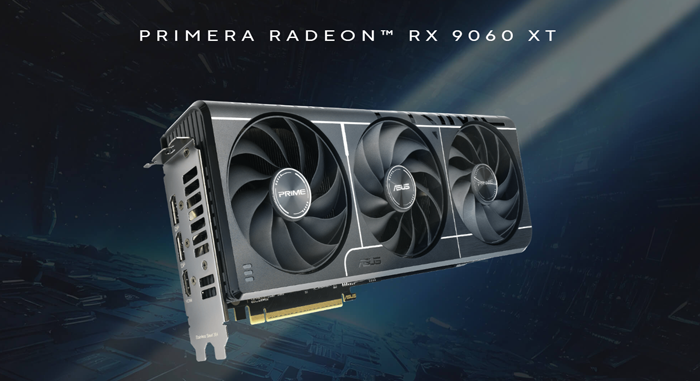

Asus Prime Radeon RX 9060 XT 8GB GDDR6 OC

Especificaciones

Model

PRIME-RX9060XT-O8G

Graphic Engine

AMD Radeon™ RX 9060 XT

Bus Standard

PCI Express 5.0

OpenGL

OpenGL®4.6

Video Memory

8GB GDDR6

Engine Clock

OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock)

Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock)

Stream Processors

2048

Memory Speed

20 Gbps​

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 2 (Native DisplayPort 2.1a)

HDCP Support Yes (2.3)

Maximum Display Support

3

NVlink/ Crossfire Support

No

Accessories

1 x Thank you card

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

304 x 126 x 50mm

Recommended PSU

550W

Power Connectors

1 x 8-pin

Slot

2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored

suggestion, please use the “Choose By Wattage” feature on our PSU product page:

https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may

not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable

for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using

false specifications of ASUS products.

* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics

Power). Actual individual game clock results may vary.

* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability,

frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and

variation in applications and workloads
