Access Point Ubiquiti U7 Pro XG (U7-Pro-XG)

Especificaciones

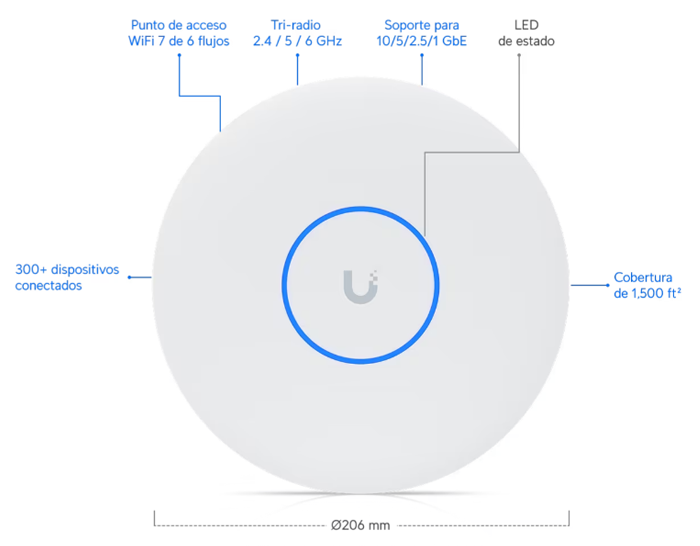

Overview

Dimensions

Ø206 x 32.5 mm (Ø8.1 x 1.3")

WiFi Standard

WiFi 7

Spatial Streams

6

Coverage Area

140 m² (1,500 ft²)

Max. Client Count

300+

Uplink

10 GbE

Mounting

Ceiling, Wall (Lite Mount Included)

Power Method

PoE+

Performance

MIMO

6 GHz

2 x 2 (DL/UL MU-MIMO)

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz

5.8 Gbps (BW320)

5 GHz

4.3 Gbps (BW240)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

6 GHz

6 dBi

5 GHz

5 dBi

2.4 GHz

4 dBi

Max. TX Power

6 GHz

24 dBm

5 GHz

26 dBm

2.4 GHz

23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7)

6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3

Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

✓

Band Steering

✓

802.11v BSS Transition Management

✓

802.11r Fast Roaming

✓

802.11k Radio Resource Management (RRM)

✓

Advanced Radio Management

✓

Passpoint (Hotspot 2.0)

✓

Captive Hotspot Portal

Custom Branding Landing Page

✓

Voucher Authentication

✓

Payment-Based Authentication

✓

External Portal Server Support

✓

Password Authentication

✓

Guest Network Isolation

✓

Private Pre-Shared Key (PPSK)

✓

WiFi Speed Limiting

✓

Client Device Isolation

✓

WiFi Schedules

✓

RADIUS over TLS (RadSec)

✓

Dynamic RADIUS-assigned VLAN

✓

Hardware

Max. Power Consumption

22W

Supported Voltage Range

42.5—57V DC

Networking Interface

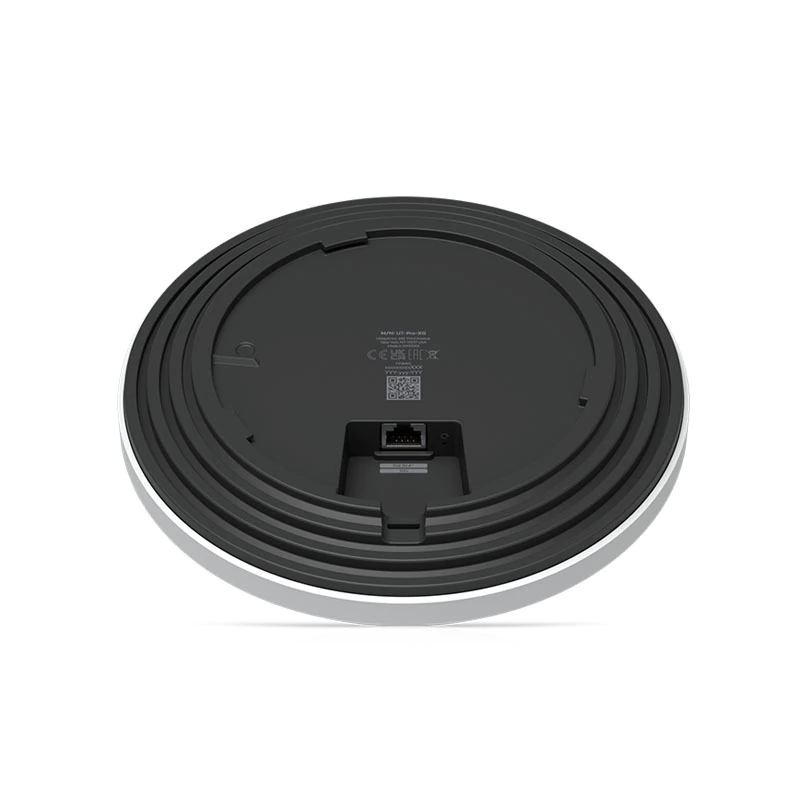

(1) 10 GbE RJ45 port

Weight

750 g (1.7 lb)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Mount Material

Stainless steel (SUS304), galvanized steel (SGCC)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel: 06630-25-08356

Operating Frequency

US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725

MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz5150 - 5725 MHz 5925 - 7125 MHz

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements
