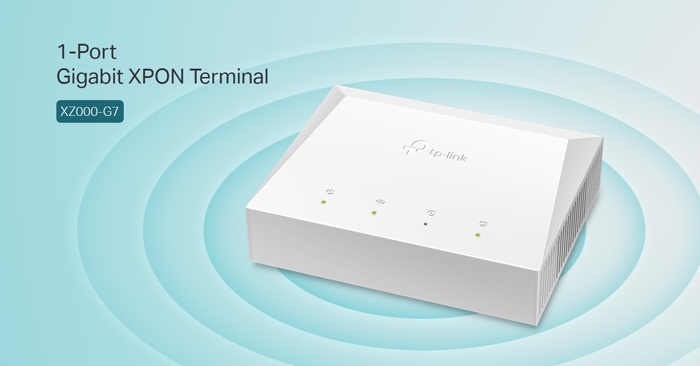

1-Port Gigabit XPON Terminal
Conectividad: 1 SC/APC PON Port + 1 puertos Gigabit LAN Ethernet.
Compatibilidad VLAN: 802.1Q TAG VLAN, VLAN Transparent/VLAN Translation/VLAN Trunk.
Autenticación: Basada en Serial Number o Password.
Gestión Remota: OMCI.
ITU-T G.984/G.988 GPON: Compatible con los estándares de la Industria. Compatibilidad con gestión OMCI. Compatible con OLTs de Terceros.
Especificaciones
|
Interface |
1 PON Port 1 10/100/1000 Mbps RJ45 Port |
|---|---|
|
Botón |
1 RESET Button |
|
Fuente de Alimentación Externa |
9VDC/0.6A |
|
Estándares IEEE |
IEEE 802.3, 802.3u, 802.1p, 802.1Q |
|
Velocidad de Datos |
Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)* Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)* |
|
Longitud de Onda |
Upstream: 1310 nm Downstream: 1490 nm |
|
Dimensiones (W X D X H) |
3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm) |
|
Distancia |
0–20 Km Max |
|
Estándares GPON |
ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
|
Módulo Óptico |
Class B+ |
|
Receptor |
Super-TIA |
|
Transmisor |
DFB Laser |
|
Características Avanzadas |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism |
|---|---|
|
VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
|
Seguridad |
AES Encryption, Packet Filter based on VLAN |
|
Administración |
Local management: WebGUI, Telnet Remote management: OMCI |
|
IGMP |
IGMP v1/v2/v3 |
|
Contenidos del Paquete |
XZ000-G7 Power Adapter |
|---|---|
|
Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
|
Certificaciones |
CE, RoHS |
|
Ambiente |
Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
