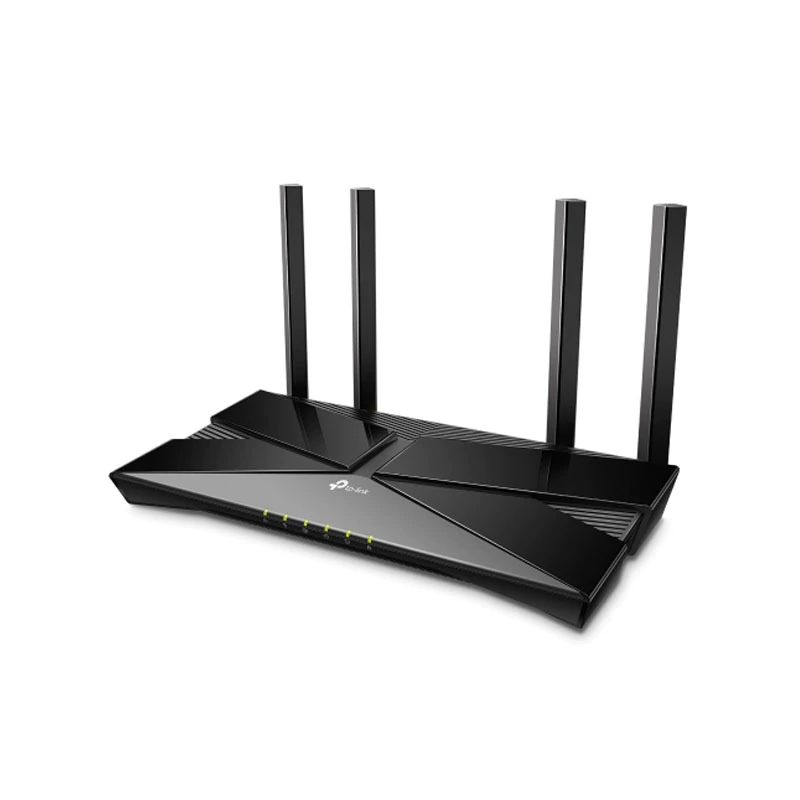

Router WiFi 6 de doble banda AX3000
--------------------------------------------------------------------------------------------------------
Especificaciones
|
Interface |
1× 10/100/1000 Mbps RJ45 WAN Port 4× 10/100/1000 Mbps RJ45 LAN Ports |
|---|---|
|
Botón |
Power On/Off Button, Reset Button, Wi-Fi/WPS Button |
|
Fuente de alimentación externa |
12V/1.5A |
|
Dimensiones (An x Pr x Al) |
10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 41.6 mm) |
|
Antena |
Four high-performance external antennas |
|
Estándares inalámbricos |
IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz |
|---|---|
|
Frecuencia |
2.4 GHz and 5 GHz |
|
Tasa de señal |
AX3000 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps |
|
Funciones inalámbricas |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
|
Seguridad inalámbrica |
WPA/WPA2/WPA3 encryptions |
|
Poder de transmision |
CE:<20dBm (2.4GHz); <23dBm (5.15GHz–5.35GHz); <30dBm (5.47GHz–5.725GHz) |
|
Multi-SSID |
2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
|
Horario inalámbrico |
Support 2.4 GHz and 5 GHz Wireless Schedule |
|
Tecnología Mesh |
EasyMesh compatible, and support 802.11k/v/r |
|
Calidad de servicio |
Hardware QoS, Flow Classification |
|---|---|
|
Características avanzadas |
TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness |
|
Modos de funcionamiento |
Router, Access Point |
|
Tipo de WAN |
Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN) |
|
Gestión |
Local management: WebGUI, Aginet app (for end users) Remote management :Aginet ACS, TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it) Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
|
DHCP |
Server, DHCP Client List, Address Reservation |
|
Reenvío de puertos |
Virtual Server, Port Triggering, UPnP, DMZ |
|
DNS Dinámico |
DynDns, NO-IP |
|
Paso de VPN |
IPSec, PPTP, L2TP |
|
Control de acceso |
Parental Controls, White List, Black List |
|
Seguridad del Firewall |
DoS, SPI Firewall, IP and MAC Address Binding |
|
Protocolos |
IPv4, IPv6 |
|
Servidor VPN |
PPTP, OpenVPN, IPSec |
|
Certificación |
CE |
|---|---|
|
contenidos del paquete |
WiFi 6 Router EX520 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
|
Requisitos |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
|
Ambiente |
Operating Temperature: 0°C–40°C (32°F–104°F) Storage Temperature: -40°C–60°C (-40°F–140°F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
