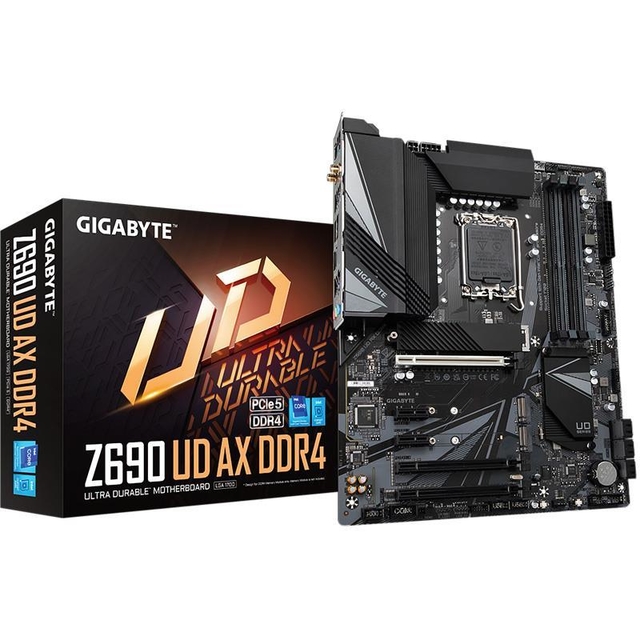

Gigabyte Z690 UD AX DDR4 (1700)

Descripción

Z690 UD AX DDR4

• Admite procesadores Intel® Core ™ 14.º/13.º/12.º

• DDR4 sin búfer sin ECC de doble canal, 4 DIMM

• Diseño de energía digital de 16*+1+2 fases híbridas gemelas con etapa de potencia de 60 A* y condensador de polímero de tantalio

• Disipadores térmicos VRM de ultra rendimiento

• Intel ® WIFI6 802.11ax 2T2R y BT5.2 con antena AERO

• LAN rápida de 2,5 GbE con gestión de ancho de banda

• 3 x NVMe PCIe 4.0 x4 M.2 ultrarrápidos con protección térmica ampliada

• SuperSpeed ​​USB 3.2 Gen 2x2 TYPE-C ® ofrece velocidades de transferencia de hasta 20 Gb/s

• RGB FUSION 2.0 admite tiras LED direccionables y RGB

• Smart Fan 6 cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP

• Q-Flash Plus Actualiza BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

• * Diseño de potencia paralela de 8+8 fases.
  * La capacidad de corriente máxima de Power Stage se basa en la fase VCORE.

Especificaciones

• Procesador

  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

  2. L3 cache varies with CPU

  * Please refer to "CPU Support List" for more information.

• Chipset

  1. Intel® Z690 Express Chipset

• Memoria

  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MT/s memory modules

  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

• Gráfica Integrada

  Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.

  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek® Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  4. Support for S/PDIF Out

• LAN

  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Módulo de comunicaciones inalámbricas

  Intel® Wi-Fi 6 AX201 (For PCB rev. 1.0)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

  2. BLUETOOTH 5.2

  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  Intel® Wi-Fi 6 AX200 (For PCB rev. 1.1/1.2)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

  2. BLUETOOTH 5.2

  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  Intel® Wi-Fi 6E AX211 (For PCB rev. 1.3/1.4)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  * Actual data rate may vary depending on environment and equipment.

• Zócalos de Expansión

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     (The PCIEX16 slot conforms to PCI Express 5.0 standard.)

  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

  3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)

  4. 2 x PCI Express x1 slots
     (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

• Interfaz de almacenamiento

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

  3. 6 x SATA 6Gb/s connectors

  Support for RAID 0, RAID 1, RAID 5, and RAID 10

  Intel® Optane™ Memory Ready
  * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

• USB

  Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

  2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

  3. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

  Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Conectores Internos E/S

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x 4-pin ATX 12V power connector

  4. 1 x CPU fan header

  5. 1 x water cooling CPU fan header

  6. 3 x system fan headers

  7. 1 x system fan/water cooling pump header

  8. 2 x addressable LED strip headers

  9. 2 x RGB LED strip headers

  10. 3 x M.2 Socket 3 connectors

  11. 6 x SATA 6Gb/s connectors

  12. 1 x front panel header

  13. 1 x front panel audio header

  14. 1 x S/PDIF Out header

  15. 1 x USB Type-C® header, with USB 3.2 Gen 1 support

  16. 1 x USB 3.2 Gen 1 header

  17. 2 x USB 2.0/1.1 headers

  18. 1 x serial port header

  19. 2 x Thunderbolt™ add-in card connectors

  20. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  21. 1 x reset button

  22. 1 x reset jumper

  23. 1 x Q-Flash Plus button

  24. 1 x Clear CMOS jumper

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

• Panel E/S Trasero

  1. 1 x PS/2 keyboard/mouse port

  2. 2 x SMA antenna connectors (2T2R)

  3. 1 x DisplayPort

  4. 1 x HDMI port

  5. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

  6. 1 x USB 3.2 Gen 2 Type-A port (red)

  7. 4 x USB 3.2 Gen 1 ports

  8. 4 x USB 2.0/1.1 ports

  9. 1 x RJ-45 port

  10. 3 x audio jacks

• Controlador E/S

  1. iTE® I/O Controller Chip

• Monitorización Hardware

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Otras Características

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     RGB Fusion
     Smart Backup
     System Information Viewer

  2. Support for Q-Flash Plus

  3. Support for Q-Flash

  4. Support for Xpress Install

• Bundled Software

  1. Norton® Internet Security (OEM version)

  2. LAN bandwidth management software

• Sistema Operativo

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Formato

  1. ATX Form Factor; 30.5cm x 24.4cm
