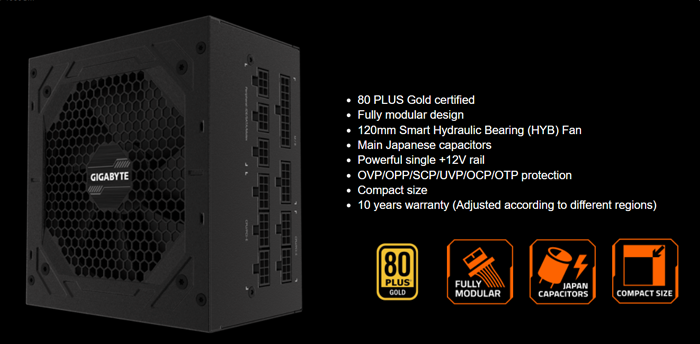

Gigabyte 1000W 80 Plus Gold (GP-P1000GM)

Descripción

P1000GM (GP-P1000GM)

Especificaciones

• Model

  GP-P1000GM

• Type

  Intel Form Factor ATX 12V v2.31

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  100-240 Vac (full range)

• Input Current

  15-6.5 A , (China: 10-6 A)

• Input Frequency

  60-50 Hz

• Output Capacity

  1000W

• Dimension

  150 x 140 x 86 mm

• Fan Type

  120mm Hydraulic Bearing ( HYB ) fan

• 80 PLUS

  Gold

• Efficiency

  90% at typical load

• MTBF

  >100,000 hours

• Protection

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-500ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All black

• Connectors

  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm*2
  PCI-e 6+2 Pin x 6 : 600mm+150mm*3
  SATA x 8 : 600mm+150mm+150mm+150mm*2 :
  4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
  500mm+120mm+120mm+120mm *1
