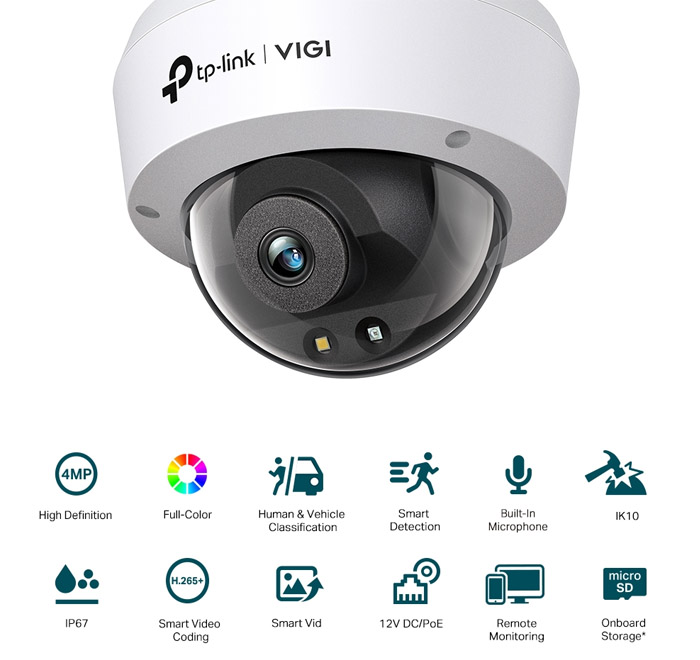

Cámara de red tipo domo full color VIGI de 4 MP
-----------------------------------------------------------------
Especificaciones
|
CÁMARA |
|
|---|---|
|
Sensor de imagen |
CMOS de escaneo progresivo de 1/3 |
|
Velocidad del obturador |
1/3 to 1/10000 s |
|
Obturador lento |
Yes |
|
Abertura |
2.8 mm: F1.6 |
|
Lente |
2.8 mm |
|
Montura del lente |
M12 |
|
iluminación mínima |
Color: 0,005 Lux; 0 Lux con luz blanca/IR |
|
Mecanismo día / noche |
Filtro de corte IR |
|
Switch día/noche |
Unified/ Scheduled/ Auto |
|
Reducción de ruido digital |
3D DNR |
|
WDR |
DWDR |
|
Clasificación resistente a la intemperie |
IP67 |
|
Rango de giro / inclinación |
Panorámica: 0° a 360°, Inclinación: 0° a 85°, Giro: 0° a 360 |
|
Ángulo de visión |
2,8 mm: Campo de visión horizontal: 95,7°, Campo de visión vertical: 51,7°, Campo de visión diagonal: 113,0°. |
|
LENTES |
|
|---|---|
|
Tipo |
Fixed Focal Lens |
|
Longitud Focal |
2.8 mm |
|
Apertura |
2.8 mm: F1.6 |
|
FOV |
2.8 mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0° |
|
Montura del lente |
M12 |
|
Distancia DORI |
2.8 mm: Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft) |
|
Angle Adjustment (Manual) |
|
|---|---|
|
Range |
Pan: 0° to 355° Tilt: 0° to 75° |
|
ILLUMINATOR |
|
|---|---|
|
IR LED |
Cantidad: 1 Alcance: 30m Longitud de onda: 850nm |
|
White LED |
Cantidad: 1 Alcance: 30m |
|
Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
|
VIDEO |
|
|---|---|
|
Max. Resolution |
2560 × 1440 |
|
Main Stream |
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
|
Sub-Stream |
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
|
Bit Rate Control |
CBR, VBR |
|
Compresión de video |
Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
|
H.264 Type |
High Profile |
|
H.264+ |
Main Stream Supported |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main Stream Supported |
|
Video Bit Rate |
Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
|
Image |
|
|---|---|
|
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
|
Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
|
Wide Dynamic Range |
DWDR |
|
SNR |
≥ 52 dB |
|
Image Parameters Switch |
Yes |
|
Privacy Mask |
Up to 4 Masks |
|
ROI |
1 Region |
|
OSD Setting |
Yes |
|
AUDIO |
|
|---|---|
|
Comunicación de audio |
N/A |
|
Entrada de audio |
Yes (Built-in Microphone) |
|
Salida de audio |
N/A |
|
Compresión de audio |
Yes |
|
Audio Sampling Rate |
8KHz |
|
Environment Noise Filtering |
Yes |
|
Audio Bit Rate |
64 Kbps(G.711 alaw) |
|
RED |
|
|---|---|
|
Protocolo |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|
ONVIF |
Yes |
|
API |
ONVIF |
|
Vistas en Vivo Simultaneas |
3 Stream Principales y 3 Sub-Streams |
|
Client |
VIGI App, VIGI Security Manager, VIGI NVR, Web |
|
Web Browser |
Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
|
Cloud |
Yes |
|
Seguridad |
Protección por contraseña, cifrado HTTPS, filtro de direcciones IP, autenticación Digest |
|
GESTIÓN DE ALARMAS Y EVENTOS |
|
|---|---|
|
Smart Event |
• Area Intrusion Detection • Line-Crossing Detection • People Detection • Vehicle Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection |
|
Basic Event |
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) |
|
Alarm Linkage |
White Light Flashing, Message Push |
|
INTERFACES |
|
|---|---|
|
Interfaz de red |
1 puerto Ethernet autoadaptable RJ45 10/100M |
|
Alarma |
N/A |
|
Reset Button |
Yes |
|
Power |
DC Power Port |
|
Botón |
- |
|
Salida de video |
- |
|
Almacenamiento a bordo |
Ranura para tarjeta de memoria integrada, admite tarjeta MicroSD de hasta 256 GB |
|
Built-in Microphone |
Sí |
|
Built-in Speaker |
N/A |
|
Audio |
N/A |
|
GENERAL |
|
|---|---|
|
Temperatura de funcionamiento |
-30-60 °C |
|
Storage Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Humedad de funcionamiento |
95% or Less (Non-Condensing) |
|
Storage Humidity |
95% or Less (Non-Condensing) |
|
Contenido del Paquete |
Cámara de red VIGI Guía de inicio rápido Accesorios para cables impermeables Accesorios de montaje |
|
Dimensiones (Al x An x Pr) |
115 × 115 × 86 mm |
|
Material |
Plástico |
|
Características generales |
Dos flujos, espejo, máscaras de privacidad, restablecimiento de contraseña por correo electrónico, escucha HTTP |
|
Peso neto |
0.28 Kg |
|
Peso bruto |
0.46 Kg |
|
Consumo de energía |
12V CC: Máx. 5,4 W PoE Clase 0 |
|
Power Supply |
12 V CC ± 5%, Enchufe de alimentación coaxial de 5,5 mm PoE (802.3af/at, clase 0) |
|
Vandal Resistant |
IK10 |
|
Protection |
IP67, IK10 |
|
Product Dimensions (L x W x H) |
4.5 × 3.4 × 4.5 in (115 × 86 × 115 mm) |
|
Certificaciones |
CE/BSMI/VCCI/ONVIF |
|
VIDEO/IMAGEN |
|
|---|---|
|
Compresión de video |
Stream principal: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
|
Velocidad de fotogramas y resoluciones |
Stream Principal: Velocidad de fotogramas: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolución: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frecuencia de imagen: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolución: 640x480,352x288, 320x240 |
|
Max. Resolution |
4MP (2560 × 1440) |
|
Vídeo transmitido en vivo |
Stream Principal Sub-Stream |
|
Configuraciones de imagen |
Espejo, Brillo, Contraste, Saturación, Nitidez, Exposición, WDR, Balance de blancos Ajustable por Software Cliente, Rotación(90°/270°) |
|
Mejora de la imagen |
BLC/3D DNR/HLC/SmartIR |
|
Velocidad vídeo Bit |
De 64 Kbps a 4 Mbps |
|
Day/Night Switch |
Día/Noche/Auto/Programado |
|
JUEGO DE FUNCIONES INTELIGENTES |
|
|---|---|
|
Evento inteligente |
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
|
Evento básico |
Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
|
Método de vinculación |
Trigger Notification: ONVIF, HTTPS |
|
Region de interes |
1 Region |
