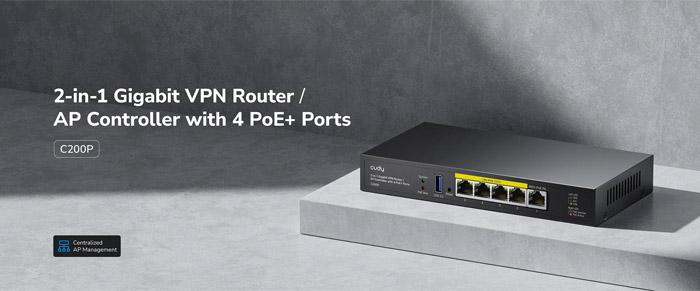

Router VPN Gigabit Cudy C200P

Descripción

C200P

Router VPN Gigabit 2 en 1/Controlador de punto de acceso con 4 puertos PoE+

Un router Gigabit que funciona como controlador de puntos de acceso Cudy en demandas de Wi-Fi para toda la casa, con cuatro salidas PoE y funciones Cudy Mesh.

Ver página de CUDY

-----------------------------------------------------------------

Especificaciones

• Versión del modelo: C200P 1.0

• CPU: CPU Details: 880 MHz Dual-Core

• Memory/Storage

  • Flash/ROM: 16 MB (128 Mbit) NOR

  • DDR/RAM: 256 MB (2 Gbit) DDR3

• Interfaces

  • Gigabit RJ45 Ports: 5

  • Gigabit RJ45 PoE Ports: #2~#5

  • Max Power on a Single PoE Ports: 30W

  • PoE Ports Notes: The PoE ports comply with IEEE 802.3at/af standards.

  • Ethernet Notes: 1× WAN Port, 4× LAN Ports

  • USB-A 3.0 Ports: 1

  • USB-A Notes: 5V/1A

• LED: System | PoE Max Status | Link/ACT/PoE Status of Each PoE Port

• Physical Buttons: Reset Button

• Power

  • Power Input Type: DC Jack

  • Power Methods: DC | 802.3at/af PoE | Passive PoE

  • Power Methods Note: The Ethernet ports provide PoE power only when the C200P is powered by DC.

  • Power Input: DC: 54V⎓1.11A | Passive PoE: 24-48V⎓ | PoE: 802.3at/af

  • Power Adapter In the Box: Input: 100-240V~, 50Hz, Output: 54V⎓1.11A

  • Max Power Consumption (W): Total: 60W | PoE: 55W | PoE (when USB Device is plugged in): 50W | No PoE: 5W

  • Idle Power Consumption (W): 2W

• Reliability

  • EMC: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV

  • Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) | Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) | Operating Humidity: 5% ~ 95% non-condensing | Storage Humidity: 0% ~ 100% non-condensing

  • Grounding Methods: Grounding Point

  • Certifications: FCC, CE

• Mechanical

  • Installation: Desktop | Wall-mount

  • Casing Material: Metal

  • Dimension: 190×100×28 mm | 7.48×3.94×1.1 inches

  • Product Weight: 454.0 g (16.01 oz.)

• Package Content: C200P | Power Adapter | Ethernet Cable | Installation Guide | Mounting Kit

• Compatibility

  • Compatible Products: AP1300 1.0, AP3000 Outdoor 1.0, AP3000 1.0, AP1300 Outdoor 1.0, AP11000 1.0, AP3000_P 1.0, AP1300_P 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, AP1300D 1.0, AP1300E Wall 1.0, AP3600 1.0, AP6500 1.0, AP1300 2.0, AP3000S 1.0

Información de empaque: El contenido de la caja (fuente de alimentación o inyector PoE) puede variar según el lote y la revisión del fabricante. Le sugerimos consultar la inclusión de estos accesorios antes de comprar para asegurar la compatibilidad con su instalación.
