Consulte nuestros mejores precios en Ubiquiti y Mikrotik

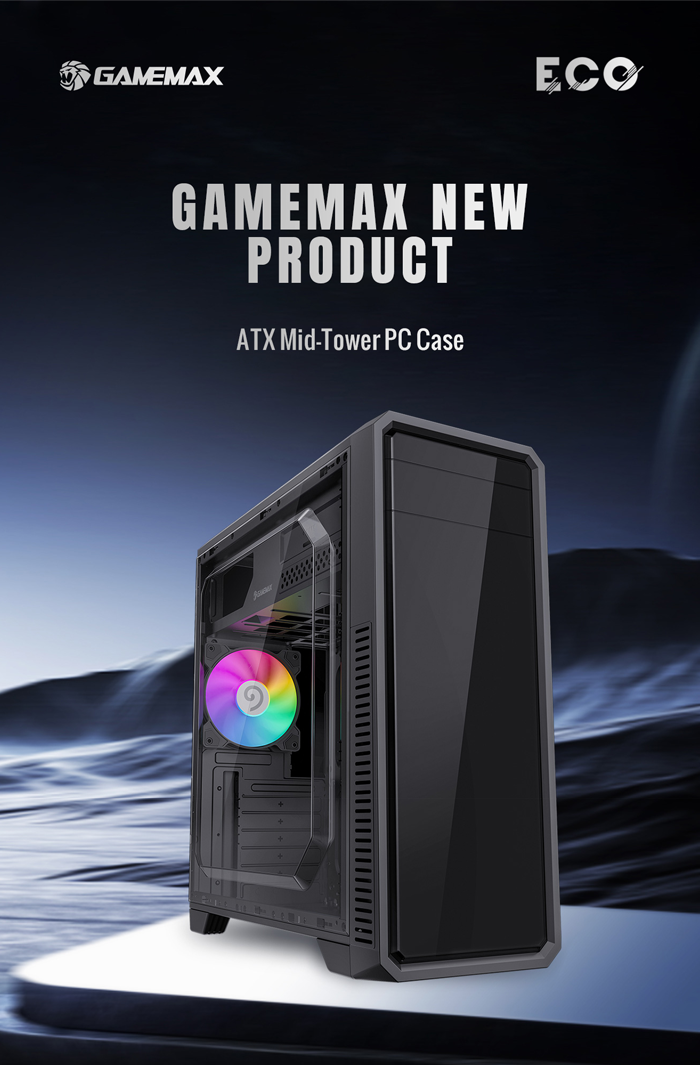

Chasis GameMax G561E-BK, versión mejorada 2023, carcasa de 0,5 mm en color negro, chasis negro con diseño tradicional de fuente de alimentación superior, fácil instalación y flujo de aire integrado.
-----------------------------------------------------------------
Especificaciones
|
Form Factor (Midi, Micro, Mini ITX, Full) |
Midi |
|
|
Chassis |
SPCC :0.5mm |
|
|
PSU Form Factor |
Top/ATX |
|
|
M/B Form Factor |
ATX?M-ATX?MiNi ITX |
|
|
Front Panel |
Matte Black+transprant front |
|
|
Top Panel |
metal cover |
|
|
Side Panel |
Left |
Acrylic Panel ( opthional -Tempered Glass ) |
|
Right |
metal cover |
|
|
External Drive Bay(s) |
5.25" (ODD) |
*1 Exposed x1(if not fix 3x fan) |
|
3.5" |
*0 |
|
|
Internal Drive Bay(s) |
3.5" (HDD) |
*2 |
|
2.5" (SSD) |
*2 |
|
|
I/O |
Buttons |
*2 |
|
USB2.0 Port(s) |
*2 |
|
|
USB3.0 Port(s) |
*1 |
|
|
USB3.1 Port(s) |
*0 |
|
|
HD Audio Support |
*1(Audio*1+Mic*1) |
|
|
Card Reader (Support) |
*0 |
|
|
P-Lock |
*0 |
|
|
Fan Controller |
*0 |
|
|
Controller max. fans |
*0 |
|
|
RGB Controller max. LED strips |
*0 |
|
|
Remote (IR or RF) |
*0 |
|
|
Cooling Fan Support |
Front |
2x120mm(Fan optional) |
|
Top |
0 |
|
|
Rear |
1x120mm (nicluded) |
|
|
Left Side |
0 |
|
|
PSU Cover |
0 |
|
|
Water Cooling Support (Radiator Size) |
Front |
120mm, 140mm,240mm |
|
Top |
0 |
|
|
Rear |
120mm*1 |
|
|
Dust Cover |
Bottom and top cover with dust filter |
|
|
Slots |
*7 |
|
|
Carton & Logo |
GAMEMAX |
|
|
Dimensions |
Chassis |
(L)370*(W)180*(H)427mm |
|
Full Case (inc Fascia) |
(L)424*(W)200*(H)452mm |
|
|
Carton |
(L)494*(W)236*(H)468mm |
|
|
Net Weight (Kg) |
4.2kgs |
|
|
Gross Weight (Kg) |
5.0kgs |
|
|
VGA Card Length |
up to 360mm |
|
|
CPU Cooler Height |
160mm |
|
|
Cable Management Depth |
22mm |
|
