MeetingBar A25 + CTP25
Barra de colaboración de video Android todo en uno para salas de enfoque

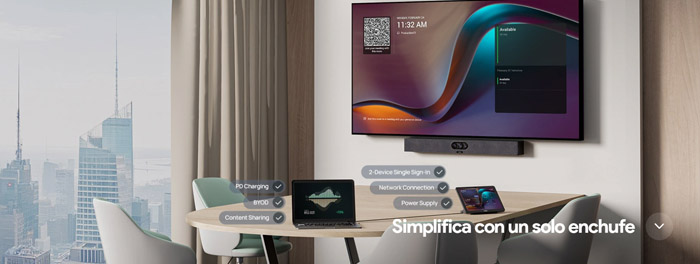

La Yealink MeetingBar A25 es una barra de colaboración de video todo en uno diseñada para salas de enfoque. Está equipada con un avanzado sistema de tres cámaras, ofrece un campo de visión ultra amplio de 151° y proporciona imágenes de alta definición.
También integra un altavoz de alta calidad y una matriz de 8 micrófonos MEMS. Su tecnología inteligente de reducción de ruido integrada proporciona una experiencia de audio superior durante las reuniones.
La Yealink MeetingBar A25 funciona con el sistema operativo Android 13 y continuará recibiendo futuras actualizaciones, garantizando que los usuarios tengan acceso a las últimas funciones y mejoras.
Además, es compatible con Microsoft MDEP, lo que mejora la seguridad y la experiencia de implementación. Esta integración proporciona a los usuarios un entorno más seguro y procesos de implementación más simples y eficientes, contribuyendo a una experiencia de uso más fluida y segura.
Por otro lado, la Yealink MeetingBar A25 permite una conexión directa con CTP25, simplificando el proceso de inicio de sesión. Esta experiencia de acceso optimizada ahorra tiempo a los usuarios y mejora la comodidad de uso.
-----------------------------------------------------------------
Especificaciones
Operating System: Android 13 | Based on the Microsoft Device Ecosystem Platform (MDEP)
Camera:
Number of cameras: 3
Lens FOV: 1x Ultra-Wide Camera: DFOV 182°, HFOV 151°, VFOV 81° | 2x Tele Camera: DFOV 93.5°, HFOV 84.4°, VFOV 53.1°
Maximum pixels: 3 * 4k Cameras, all with 8MP image sensors
Number of preset positions: 9
Depth of field: 0.4-2.5 meters
Maximum resolution: 3840 * 2160
Maximum frame rate: 30fps
Video output resolution: 4k (2160p) 30fps, 1080p60fps
Privacy cover: Electric lens cap
Electronic gimbal
Lens calibration
Intelligence Features: IntelliFocus (2 portraits), Auto Framing, Speaker Tracking, Picture in Picture, Video Fence, Smart Gallery (Zoom Rooms only)
Speaker:
Built-in a 10W speaker
Rated power: 10W
Maximum power: 12W
Maximum sound pressure level: 90dBSPL 10W@1m
Frequency response: 100-16kHz
Sensitivity: 86dB SPL @ 1W @ 0.5 meter
Sampling rate: 48kHz
Sound emission angle: Forward-facing
Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
Rated impedance: 4 ohms
Microphone:
Built-in 8 MEMS microphone array
5-meter pickup distance, 3.5-meter high-quality pickup distance
Signal-to-noise ratio: 72dB@1kHz
Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
Dynamic range: 28-100dBSPL
Sensitivity: -38dBV/pa
Frequency response: 100-20kHz
Sampling rate: 48k32bit
Bit depth: 32-bit
Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
Noise suppression: AI-enhanced noise suppression
Expansion Mics: not supported
Resolution:
Lens Resolution: up to 4k30fps
Bandwidth requirement: 10Mbps or more
Content sharing:
Teams: 1080P30fps in meeting, 4k30fps in local sharing
Zoom: up to 1080p30fps
General Mode (BYOM): up to 4k30fps
RingCentral: 1080p30fps
H.323/SIP: 1080p30fps
Video Codec: H.264 High profile, H.264 SVC, H.264
Audio Codec: ARES: 24kHz bandwidth, G.722.1C: 16kHz bandwidth, G.722.1: 8kHz bandwidth, G.722: 8kHz bandwidth, G.711 (PCMA/PCMU): 4kHz bandwidth, G.729: 8kHz bandwidth
Security:
Full Disk Encryption: AES-128, AES-256
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Communication standard protocol:
H.323/SIP in General Mode
Dual stream protocol: H.239 (H.323) / BFCP (SIP)
FECC: H.224/H.281
H.323 protocol suit: H.245, H.225, H.235, H.241
Gatekeeper account and SIP account
Network Protocol:
Wi-Fi 6 (2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax, 2x2 MIMO)
Bluetooth 5.1
TCP/IP (IPv4/IPv6), DHCP/static IP
HTTPS secure web access
Configuration Management:
Automatic configuration via web page/display/AutoP
Firmware upgrade, factory reset
Configuration import and export
System log export
Device Management: Yealink Https Web Portal, Yealink Device Management Platform, Yealink Management Cloud Service, Microsoft Device Management Platform (Microsoft Teams Admin Center/Intune), Zoom Device Management
Installation:
Wall mount (provided with the product)
Use TV Mount (additional: purchase VB-TVMount-01, VB-TVMount-02 or TVClip Mount)
Place on the desktop (additional: purchase VB-TabletopMount-01)
Ports:
1x USB2.0 Type-A port
1x USB2.0 Type-C port（side）
1x USB3.0 Type-C port (video input supports formats up to maximum 4K30 fps, including 1080P60fps content sharing; video output supports formats up to 1080P30fps BYOM)
1x Ethernet port: 10/100/1000Mbps
1x Yealink VCH port (RJ-45)
1x HDMI-out port (video output supports formats up to maximum 4k30fps, including 1080p60fps; supports HDMI CEC)
1x 3.5mm Line-out port
1x Power port
1x Security lock slot
1x Reset slot
Package:
MeetingBar A25
Power adapter, 3.5m/11.48ft
1x HDMI cable, 1.8m/5.91ft
1x Network cable, 3m/9.84ft
1x USB A to C cable, 3.0m/9.84ft
Wall Mount
Cable cover
MeetingBar A25 quick start guide
Optional Package:
A25-010: A25+VCR11+USB C to C cable (1.8m/5.91ft)
A25-031: A25+CTP25 Package (CTP25, 2m/6.56ft 65W PD power adapter, 7.5m/24.6ft Network cable, 1.2m/3.94ft USB C to C cable, High stand, Cable management cover)
Environmental Factor:
Operating humidity: 10 - 95%
Operating temperature: 0 - 40°C
Storage temperature: -30℃~70℃
BTU/hr: 38 in idle, 58 in meeting
Dimensions and weight (W × D × H):
MeetingBar A25: 570x80x65 mm
N.W/CTN: 3.812kg
G.W/CTN: 4.290kg
Warranty: Standard: 2-year limited hardware warranty included | Extended: Additional extended warranties are available at the time of hardware purchase. Contact your reseller.
MeetingBar Kit:
Focus & Huddle Room | A25-031 | MeetingBar A25+CTP25
