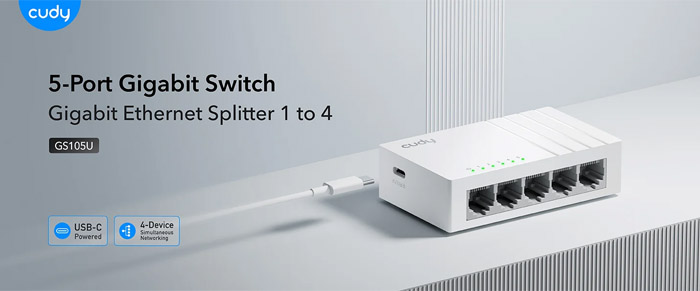

Switch Cudy GS105U

Descripción

GS105U

Ver página de CUDY

-----------------------------------------------------------------

Especificaciones

• Interfaces:

  • Gigabit RJ45 Ports: 5

• LED: Power, Link/ACT of Each Ethernet Port

• Performance:

  • Max Copper Speed and Distance:

    • Cat. 3 or higher cable: 100 meters at 10 Mbps

    • Cat. 5 or higher cable: 100 meters at 100 Mbps

    • Cat. 5e or higher cable: 140 meters at Gigabit

  • MAC Address Table: 2048

  • Max Switching Capacity: 10 Gbps

  • Max Forwarding Rate: 7.44 Mpps

  • Jumbo Frame: 15 KB

  • Packet Buffer: 3 Mbit

• Power:

  • Power Input Type: USB-C Port

  • Basic Power Saving: Supported

  • Power Methods: USB-C

  • Power Input: 5V⎓

  • Max Power Consumption: 2W

  • Idle Power Consumption: 1.4W

• Switching 802.3 Protocols:

  • 802.3x Flow Control

  • 802.3i 10BASE-T

  • 802.3u 100BASE-TX

  • 802.3ab 1000BASE-T

• Reliability:

  • EMS:

    • IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV

    • IEC/EN 61000-4-5, Level 3 Surge: 2kV

• Environment:

  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

  • Operating Humidity: 10% ~ 90% non-condensing

  • Storage Humidity: 5% ~ 90% non-condensing

• Mechanical:

  • Dimension: 88×52.5×24 mm

  • Product Weight: 53 g

  • Casing Material: Plastic

  • Installation: Desktop, Wall-mount

• Package Content:

  • GS105U

  • USB-A to USB-C Power Cable

  • Installation Guide
