Especificaciones
|

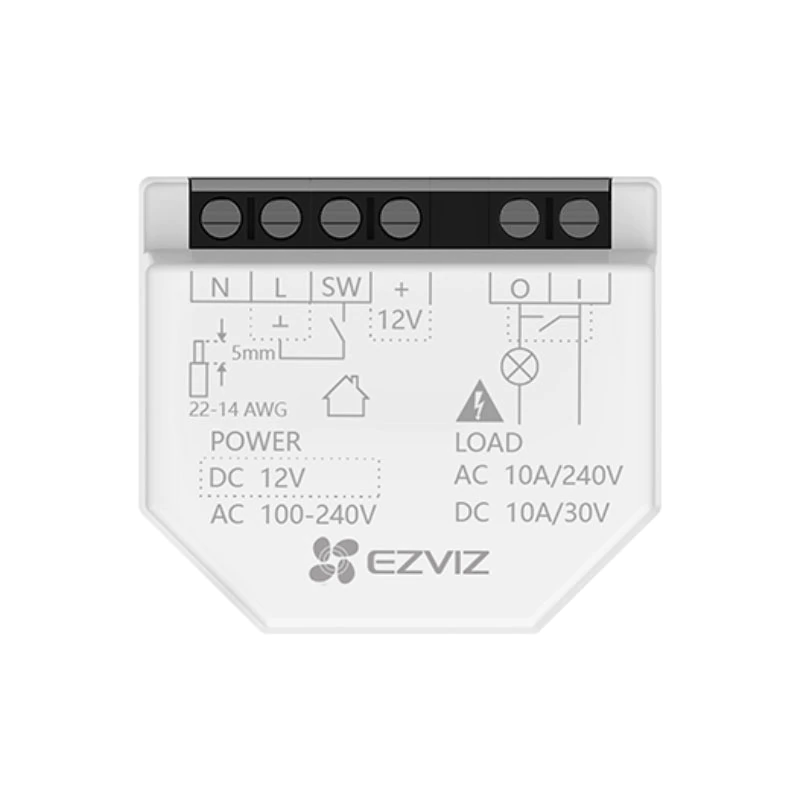

Model |
CS-T35-R100-WD |
|---|---|
|
Physical |
|
|
Sensor type |
Wi-Fi Relay |
|
Radio frequency |
2.4GHz |
|
Size |
38.4 × 43.8 × 18.5mm |
|
Net weight |
26.5g |
|
With package |
95.8g |
|
Mounting |
Wall console |
|
Conductor cross section |
22 to 14 AWG |
|
Wall Console |
Plastic |
|
Color |
White |
|
Dry Contacts |
Supports |
|
Relay |
16A |
|
Electrical |
|
|
Power supply |
100-240 VAC, 50 –60 Hz / 12VDC |
|
Power consumption |
≤1.5W |
|
Max. Switching Voltage |
250V AC or 30V DC |
|
Channels |
1 Channel |
|
Connectivity |
|
|
Communication |
Wi-Fi 6, BLE |
|
Radio frequency |
2.4 GHz |
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
|
Wi-Fi distance |
≤ 200m in open environment |
|
Environmental |
|
|
Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
|
Storage temperature |
-10°C to 45°C (14°F to 113 °F ) |
|
Max. altitude |
2000m / 6562ft |
|
Special Function |
|
|
Device Temperature Protection |
Yes |
|
Overload Protection |
Yes |
|
Google Assistant & Alexa |
Supports |
|
Matter |
Supports |
|
In the box |
|
|
In the box |
- T35WD ×1 |
|
- Pin × 1 |
|
|
- Regulatory information ×1 |
|
|
- Quick start guide ×1 |
|
|
Certifications |
|
|
Certifications |
CE / REACH / WEEE / RoHS |
